Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. IGN "ON" & Engine "OFF"
3. Monitor the "KEY STATUS","SMARTRA STATUS" and "ECU STATUS" Parameter on the Scantool.

Specification : 'LEARNT'





fig. 1) The current data in normal state

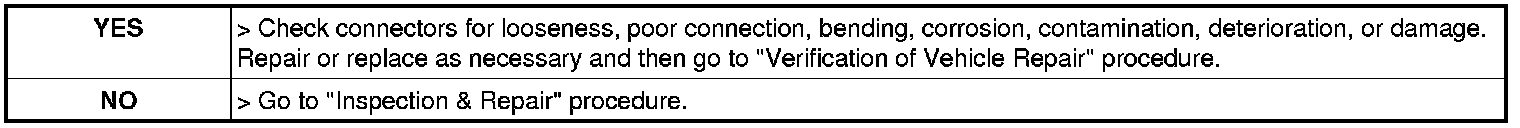

4. Are "KEY STATUS", "SMARTRA STATUS" and "ECU STATUS" Parameter within specifications ?
