Scantool Diagnostics

Monitor Scantool Data

1. Check transponder status
(1) IGN "ON" & Engine "OFF" with key intended to register
(2) Monitor the "KEY STATUS" Parameter on the Scantool.

Specification : 'VIRGIN' or 'LEARNT'





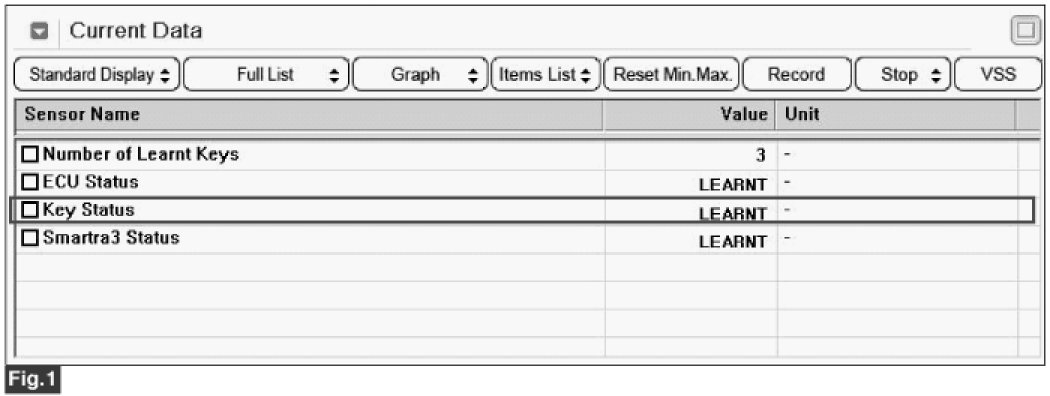

fig. 1) The current data in abnormal state

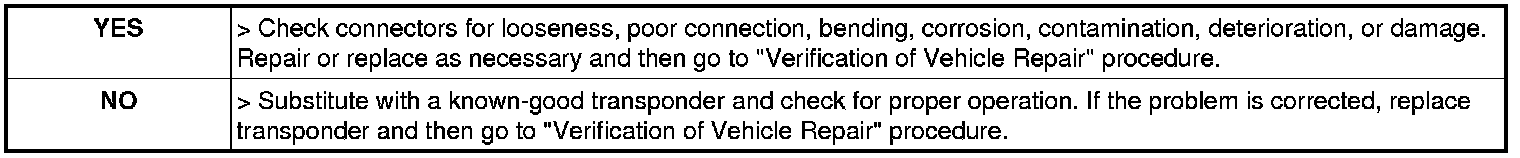

(3) Is the measured voltage within specifications ?
