Component Inspection





Component Inspection

1. Ignition "OFF"
2. Disconnect ISCA valve connector
3. Measure resistance between Close control terminal and power terminal of ISCA connector (Component side).
Specification

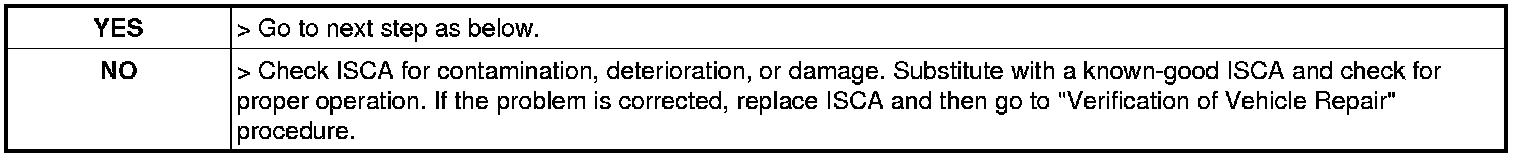

4. Is resistance within the specification ?
