Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to data link connector (DLC)
2. Ignition "ON" & Engine "OFF".
3. Monitor the "BATTERY VOLTAGE" parameter on the GDS

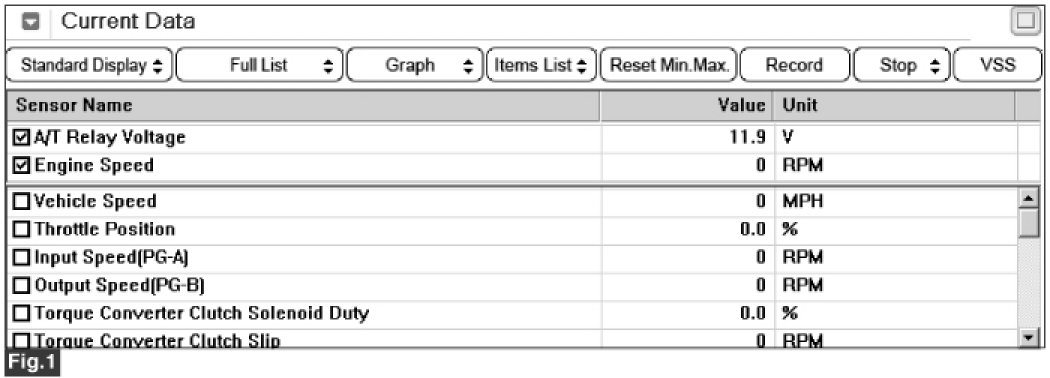

Fig 1) Ignition "ON "A/T RELAY"

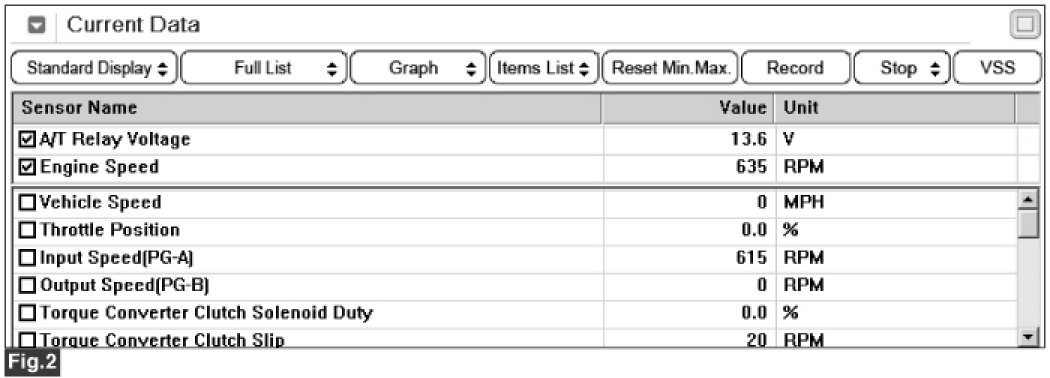

Fig 2) Idle "A/T RELAY"
4. Does "BATTERY VOLTAGE" follow the referance data ?
