Monitor Scantool Data

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "PCSV-A (OD & LR) SOLENOID VALVE" parameter on the GDS.
4. Shift gear at each position.

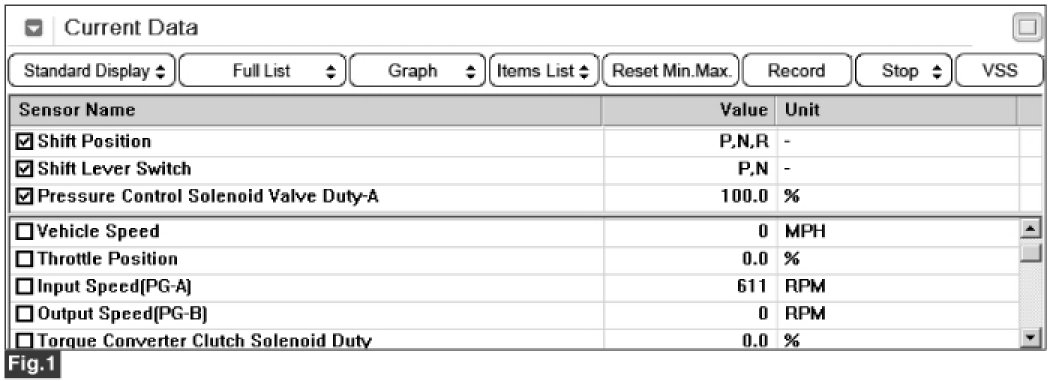

Fig 1) "P,N"

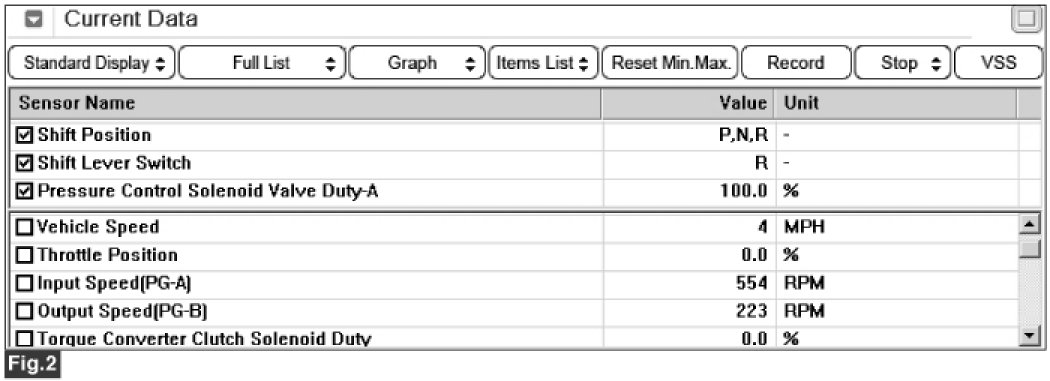

Fig 2) "R"

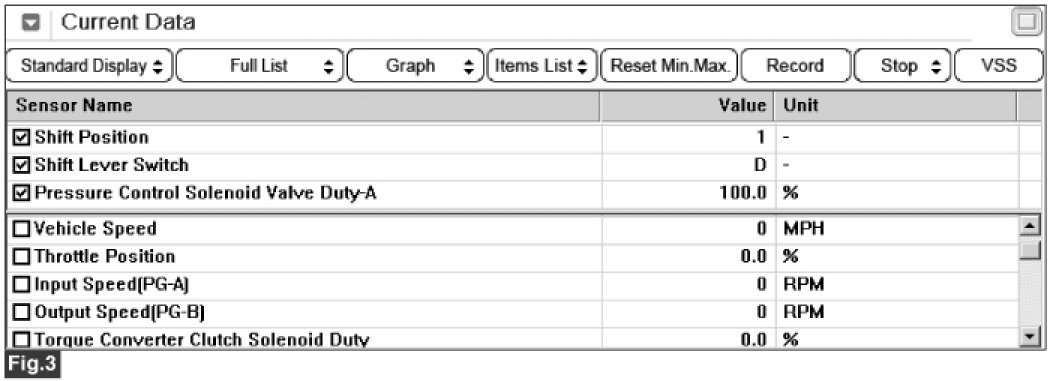

Fig 3) "D Range 1st" gear,VEHICLE SPEED=0

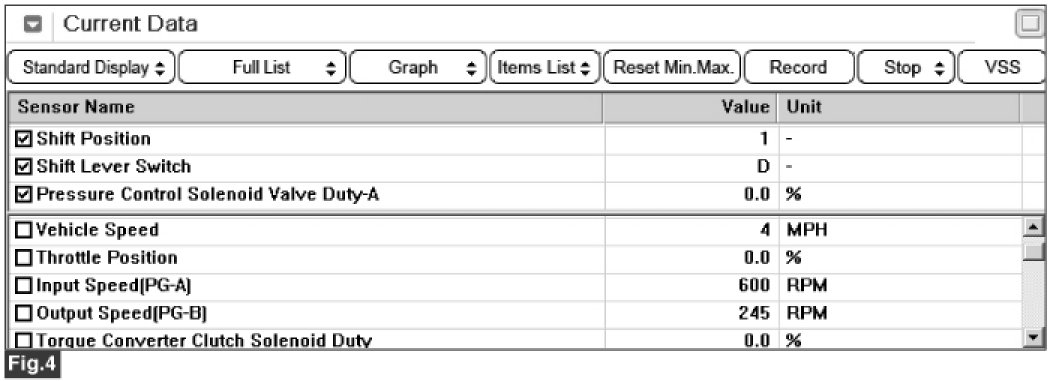

Fig 4) "D Range 1st" gear
Fig 5) "D Range 2nd" gear

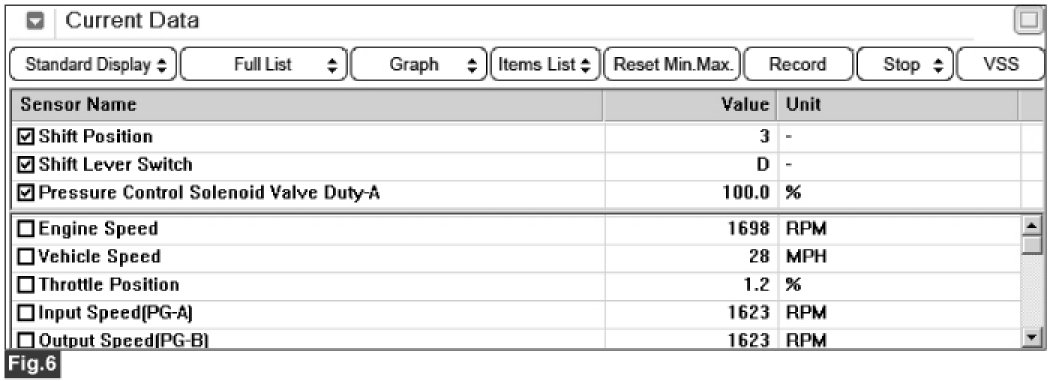

Fig 6) "D Range 3rd" gear

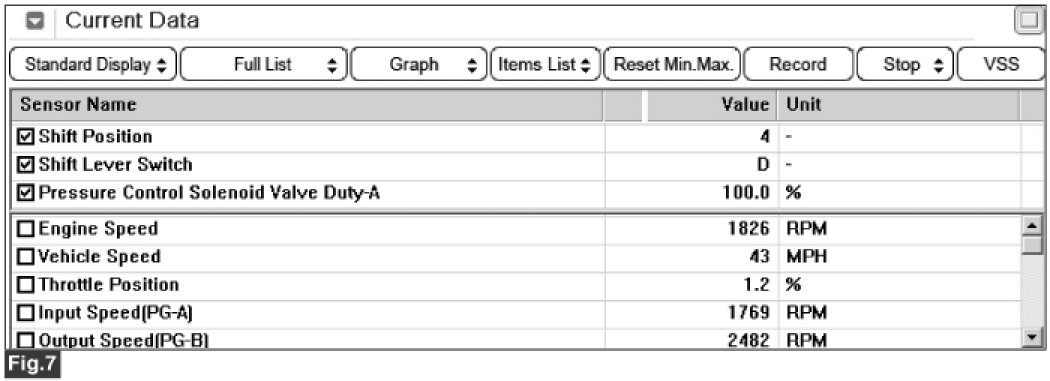

Fig 7) "D Range 4th" gear
5. Does "PCSV-A (OD & LR) SOLENOID VALVE" follow the referance data ?
