Monitor Scantool Data

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "ON/OFF (SCSV-A) SOLENOID VALVE" parameter on the GDS.
4. Shift gear at each position.

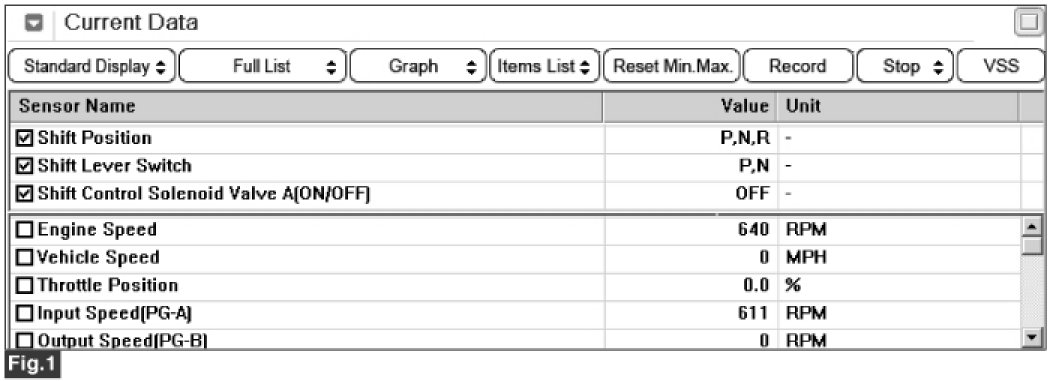

Fig 1) "P,N"

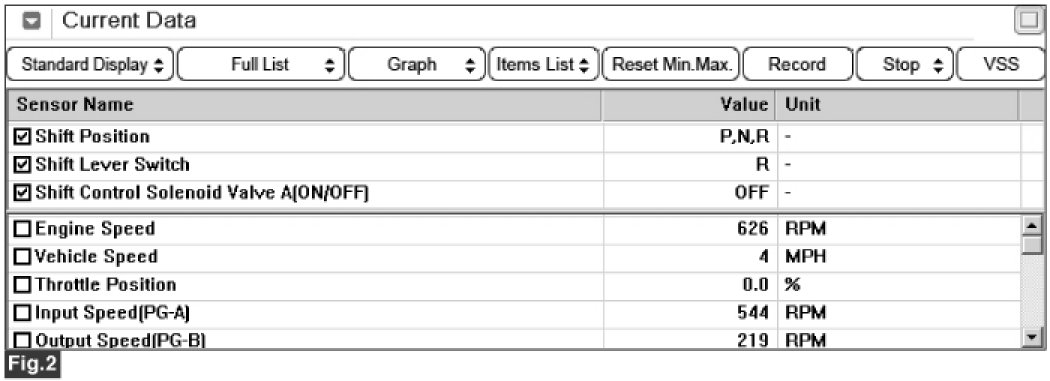

Fig 2) "R"

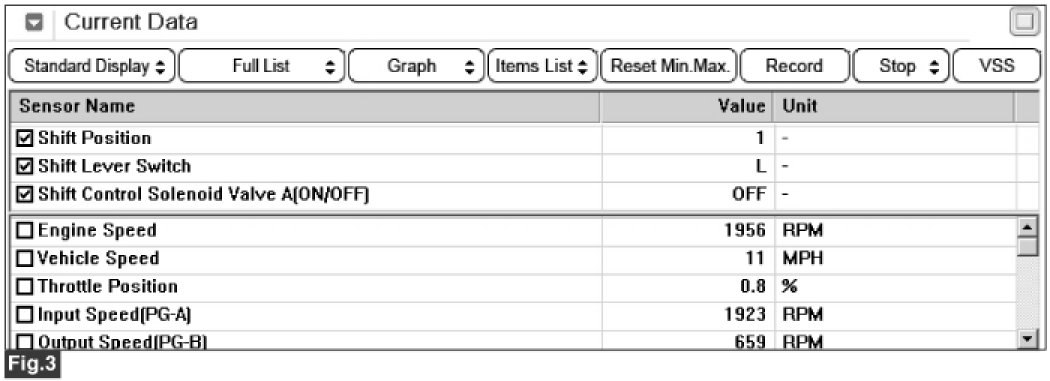

Fig 3) "1st" gear

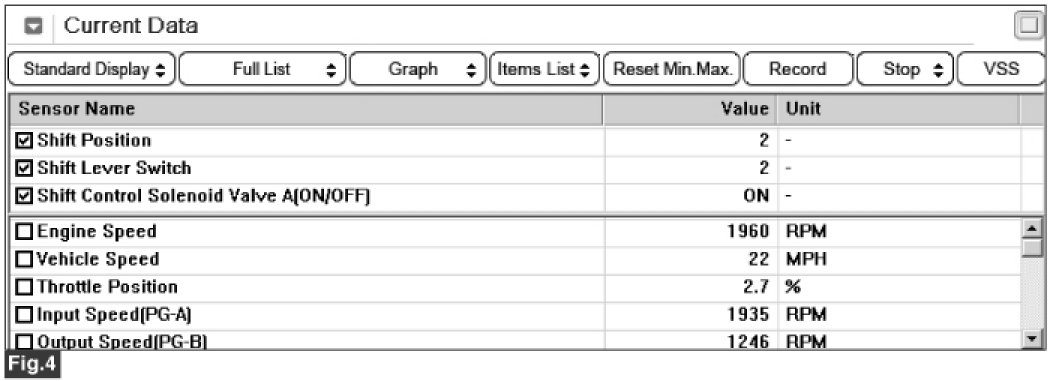

Fig 4) "2nd" gear

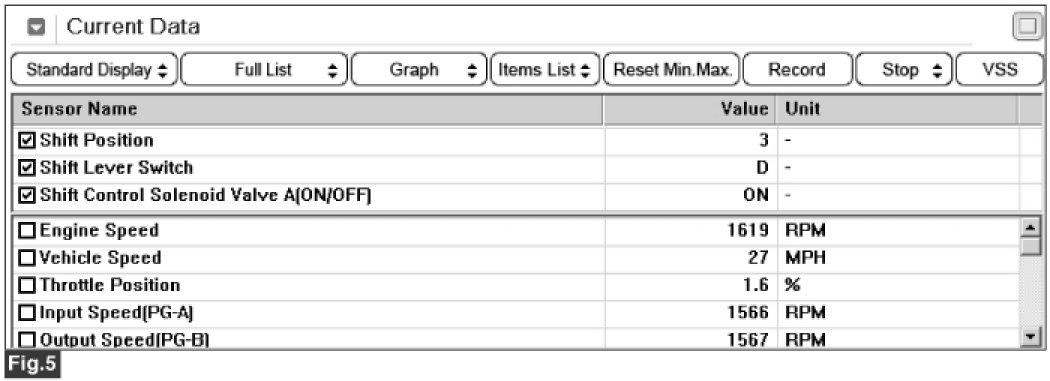

Fig 5) "3rd" gear

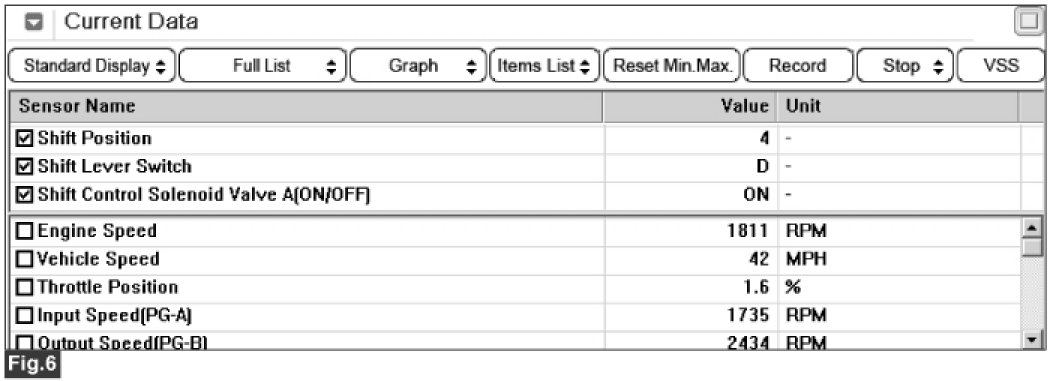

Fig 6) "4th" gear

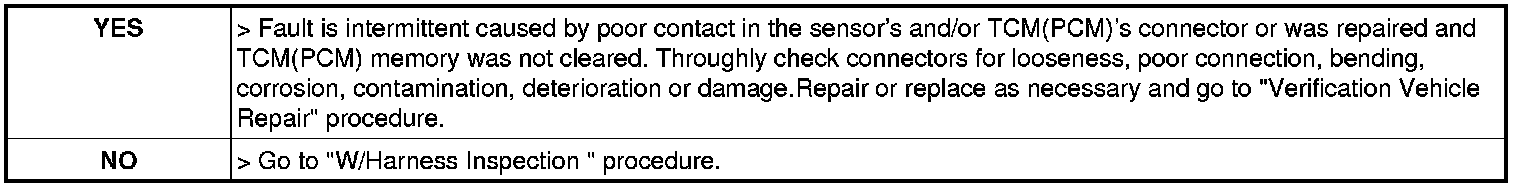

5. Does "ON/OFF SOL VALVE" follow the referance data ?
