Monitor Scantool Data

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "VF SOL. VALVE" parameter on the GDS.
4. Shift gear at each position.

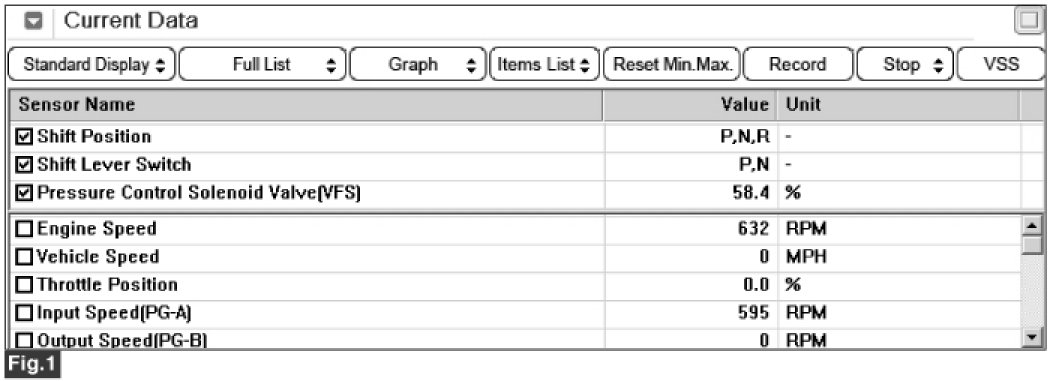

Fig 1) "P,N"

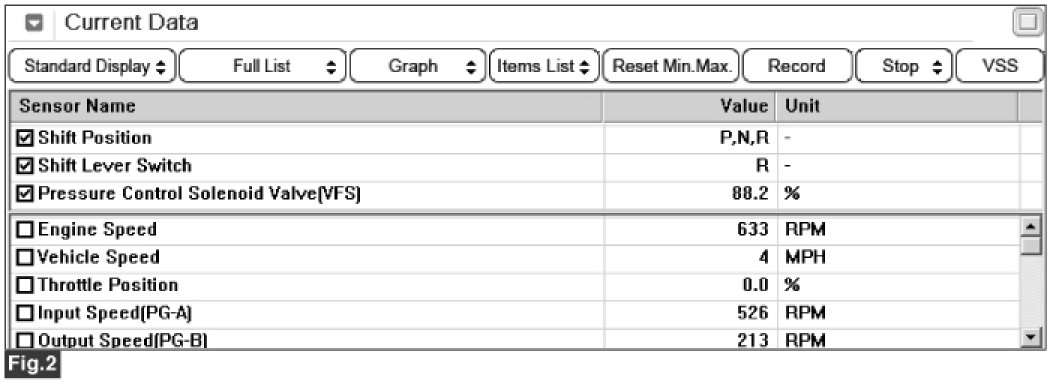

Fig 2) "R"
Fig 3) "1st" gear

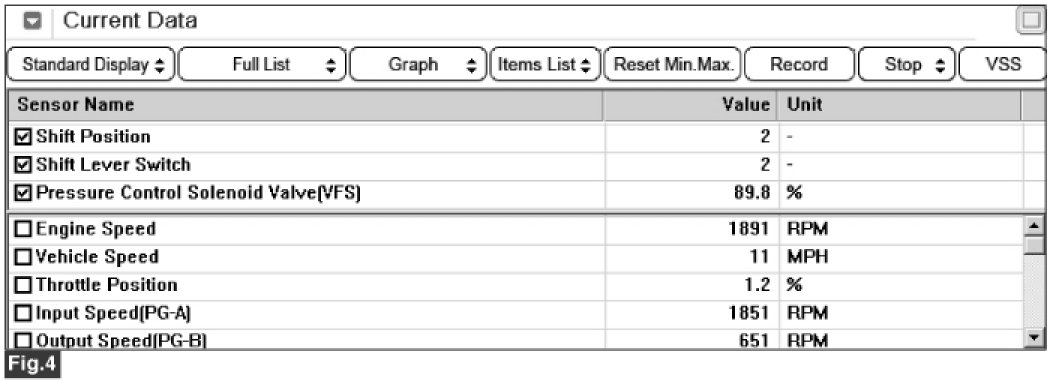

Fig 4) "2nd" gear
Fig 5) "3rd" gear

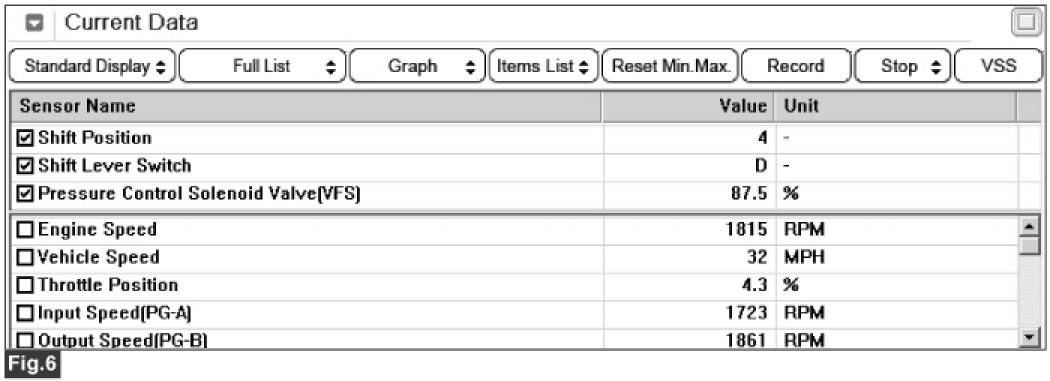

Fig 6) "4th" gear

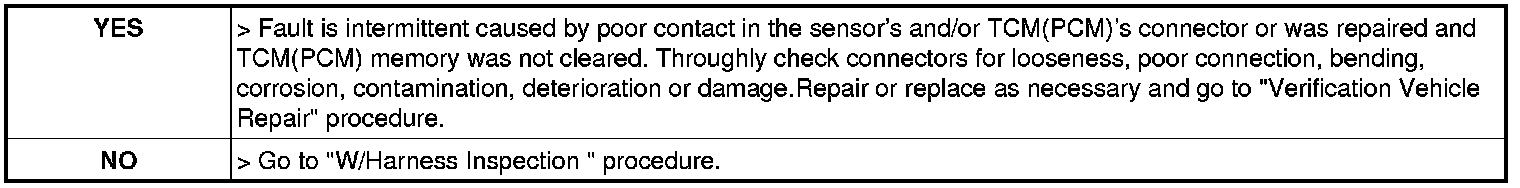

5. Does "VF SOL DUTY" follow the referance data ?
