Monitor Scantool Data

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Select "D RANGE" and drive vehicle.
4. Monitor the "TORQUE CONVERTER (DAMPER) CLUTCH" parameter on the GDS.

Specification : TCC SOL. DUTY > 30% In that condition TCC SLIP<100 RPM

























Fig 1) "P,N"
Fig 2) "R"
Fig 3) "1st" gear
Fig 4) "2nd" gear
Fig 5) "3rd" gear
Fig 6) "4th" gear

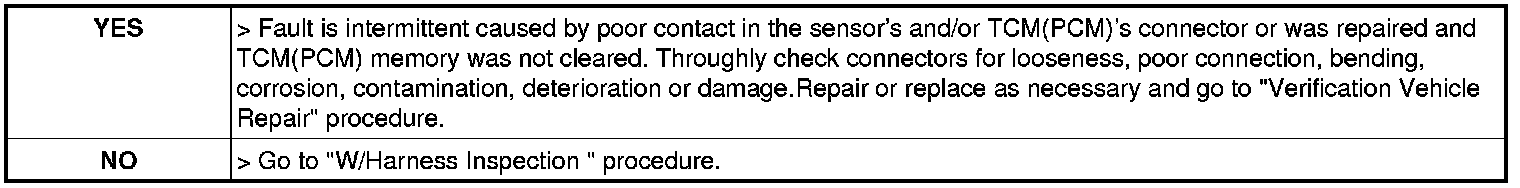

5. Are "TCC SOLENOID DUTY and TCC SLIP" within specifications ?
