Component Inspection

Component Inspection


1. Connect Oil pressure gauge to "UD" and "OD" port.
2. Engine "ON".
3. Disconnect the solenoid valve connector.
4. Drive a car with gear position 3 in fail mode.

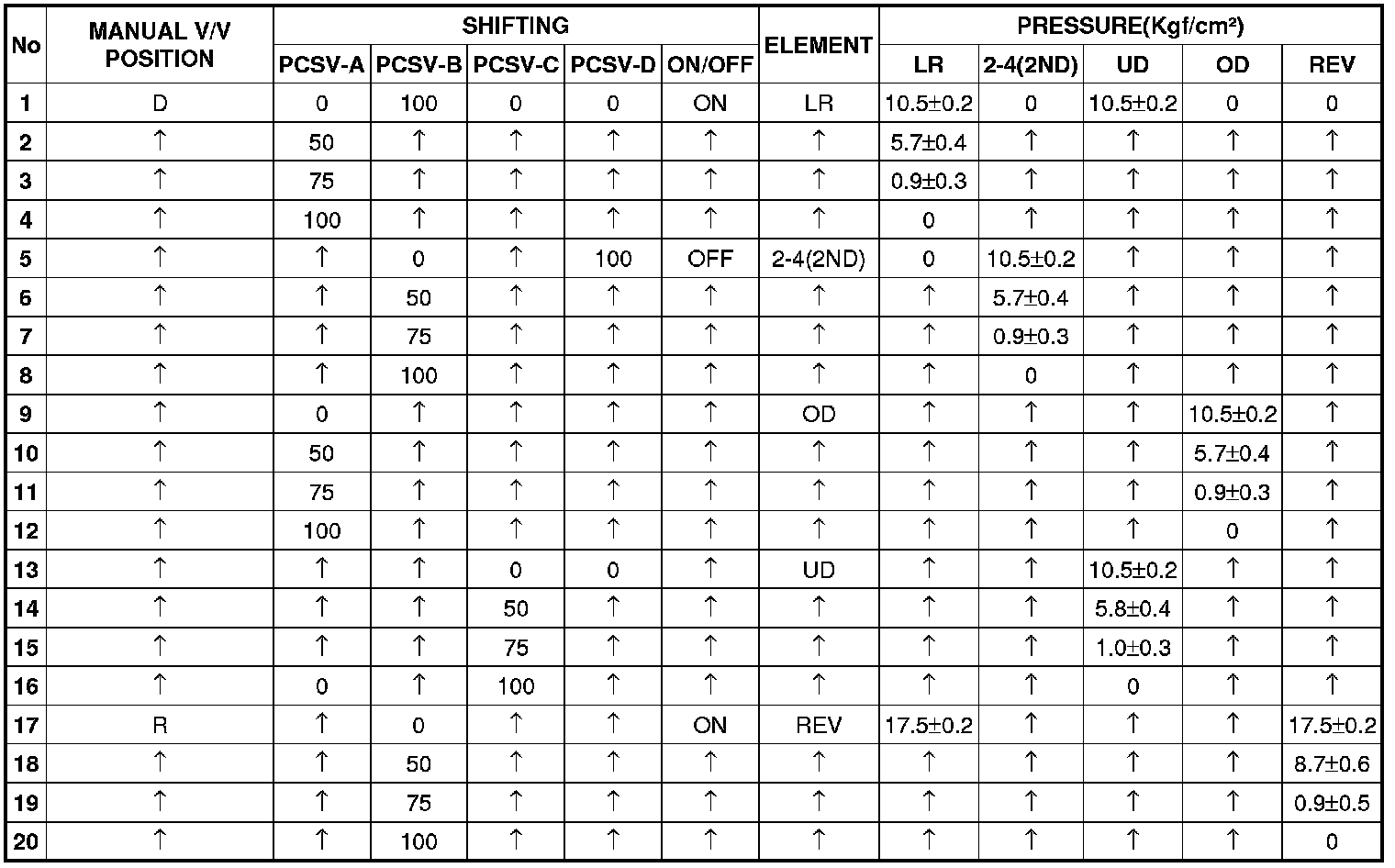

5. Compare it with referance data as below.
Specification :





** The values are subject to change according to vehicle model or conditions

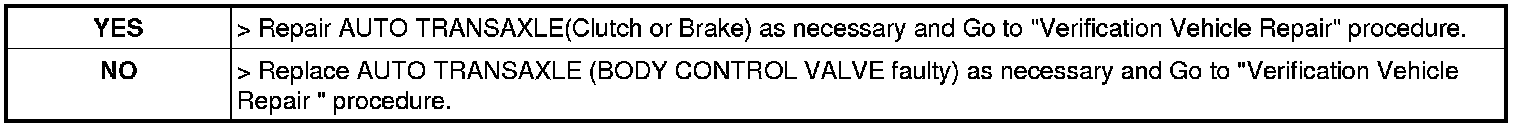

6. Is oil pressure value within specifications ?
