W/Harness Inspection

Signal Circuit Inspection

1. Connect Scantool
2. Engine "ON".

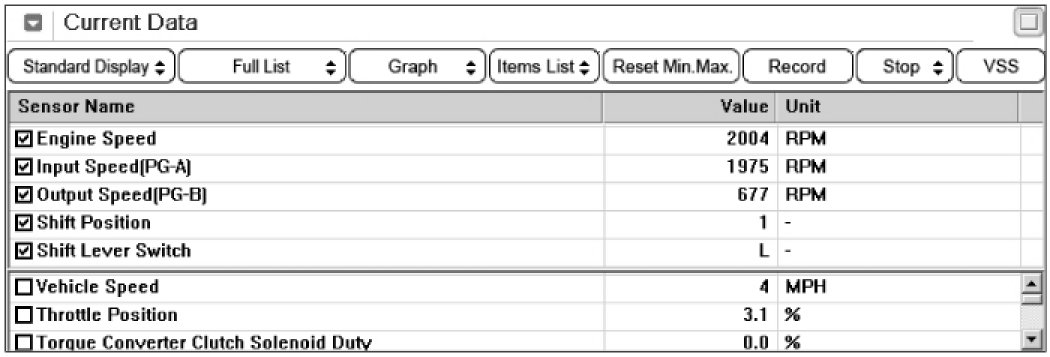

3. Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scantool.
4. Accelerate the Engine speed until about 2000 rpm in the 1st gear

Specification : INPUT SPEED - (OUTPUT SPEED • GEAR RATIO) ≤ 200 RPM

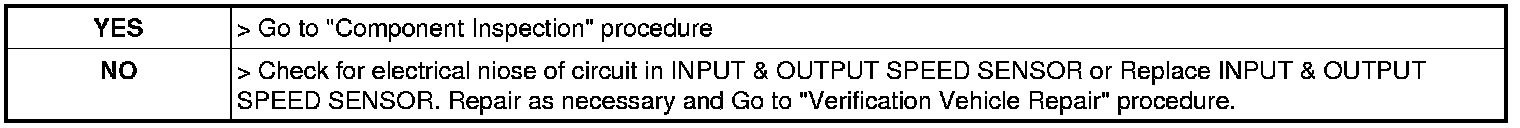

5. Are "INPUT & OUTPUT SPEED SENSOR" within specifications ?
