Monitor Scantool Data

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "INPUT SPEED SENSOR" parameter on the scantool.
4. Drive the vehicle

Specification : Increasing Gradually

























Fig 1) P,N
Fig 2) "R"
Fig 3) "4" Range
Fig 4) "3" Range
Fig 5) "2" Range
Fig 6) "L" Range

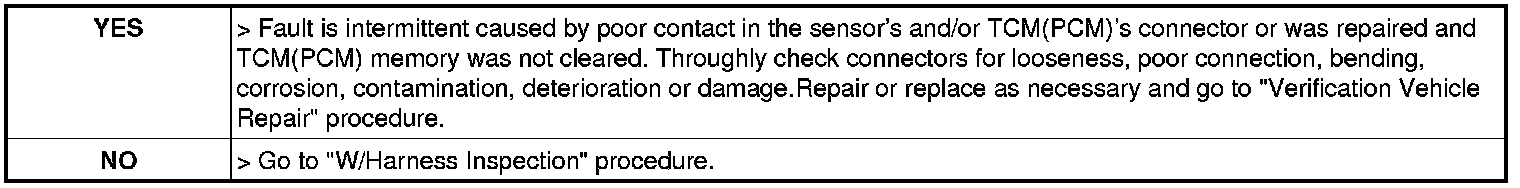

5. Does "input speed sensor" follow the referance data ?
