Monitor Scantool Data

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "TRANSAXLE FLUID TEMPERATURE SENSOR" parameter on the scantool.

Specification : Increasing Gradually

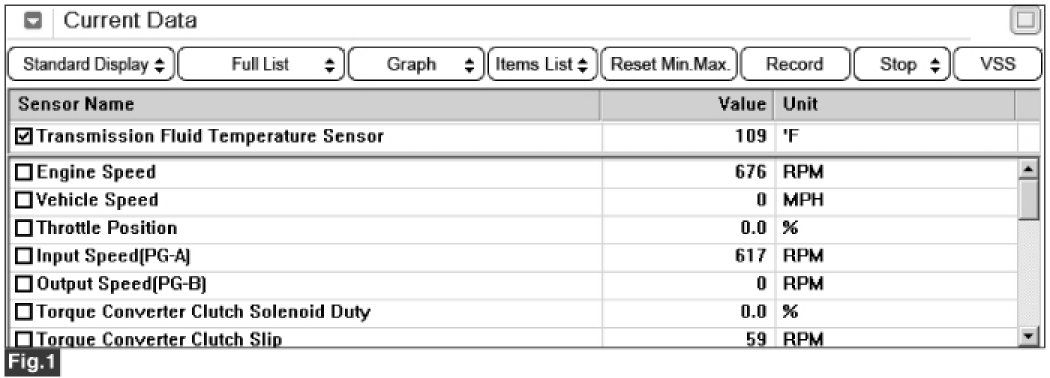

Fig 1) Normal

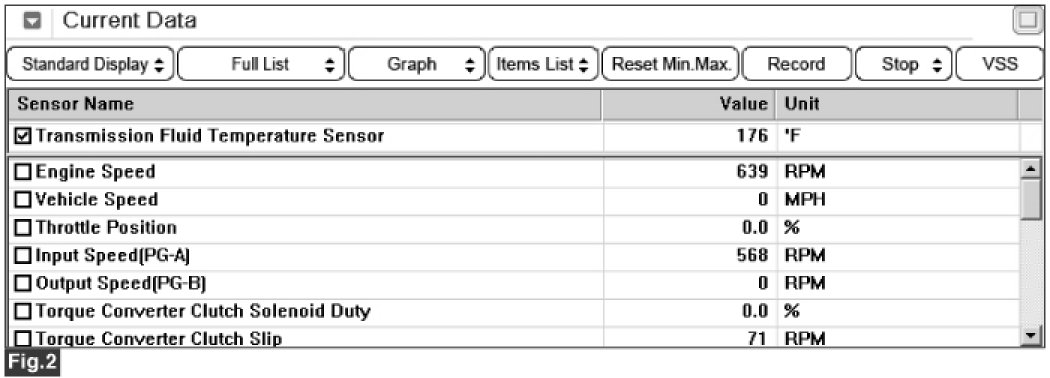

Fig 2) Signal circuit open

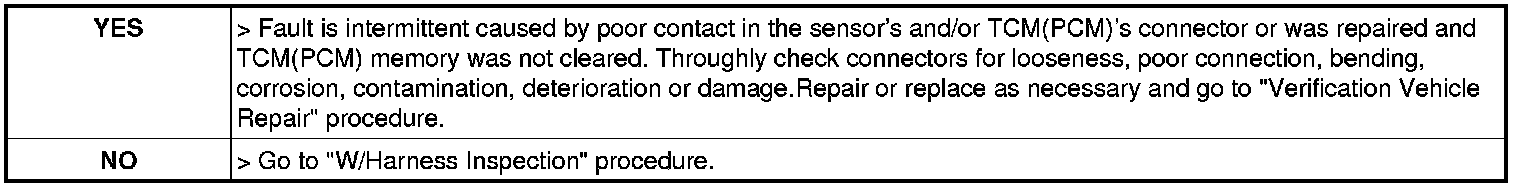

4. Does "TRANSAXLE FLUID TEMPERATURE SENSOR" follow the referance data ?
