W/Harness Inspection

Terminal and Connector Inspection

Control Circuit Inspection
1. Ignition "OFF"
2. Disconnect PCM connector
3. Ignition "ON" & Engine "OFF"
4. Using a suitable wire, jumper the terminal 92 of the PCM harness connector to chassis ground.

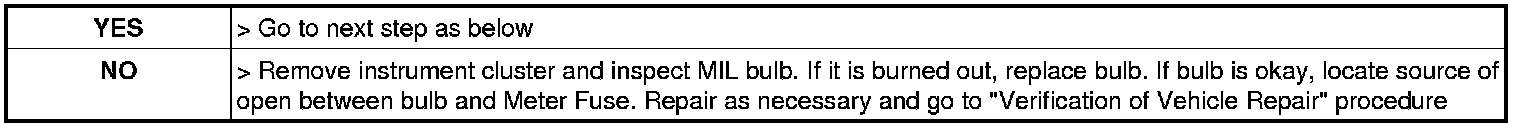

5. Is MIL bulb illuminated ?





6. Remove wire from PCM harness connector

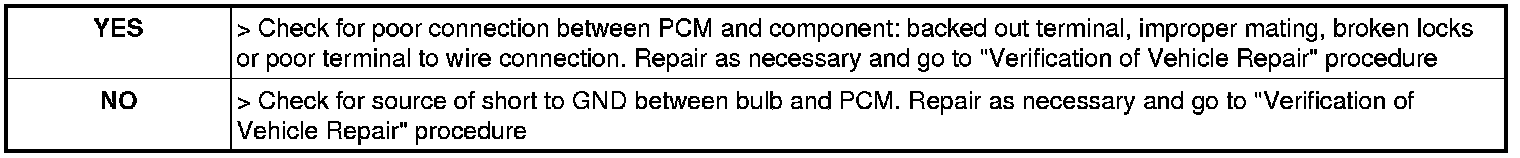

7. Does MIL bulb go out ?
