Monitor Scantool Data





Monitor GDS Data

1. Connect GDS to data link connector (DLC)
2. Ignition "ON".
3. Confirm the "ROM I.D"
4. Perform the "ROM UP-DATE"
5. Perform the Re-diagnosis

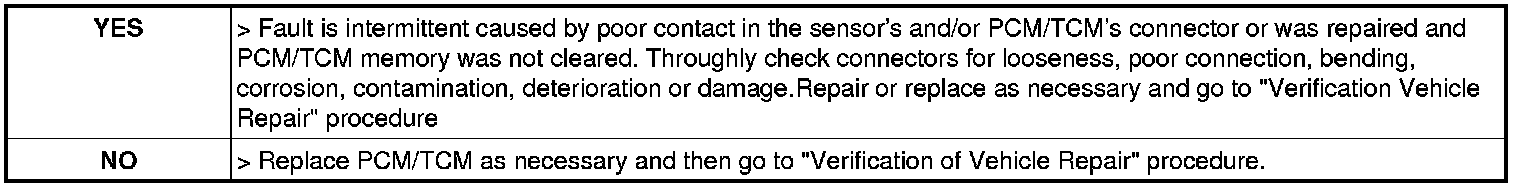

6. Is "DTC" disappeared ?
