Component Inspection

Component Inspection

1. With Ignition OFF, remove the main relay

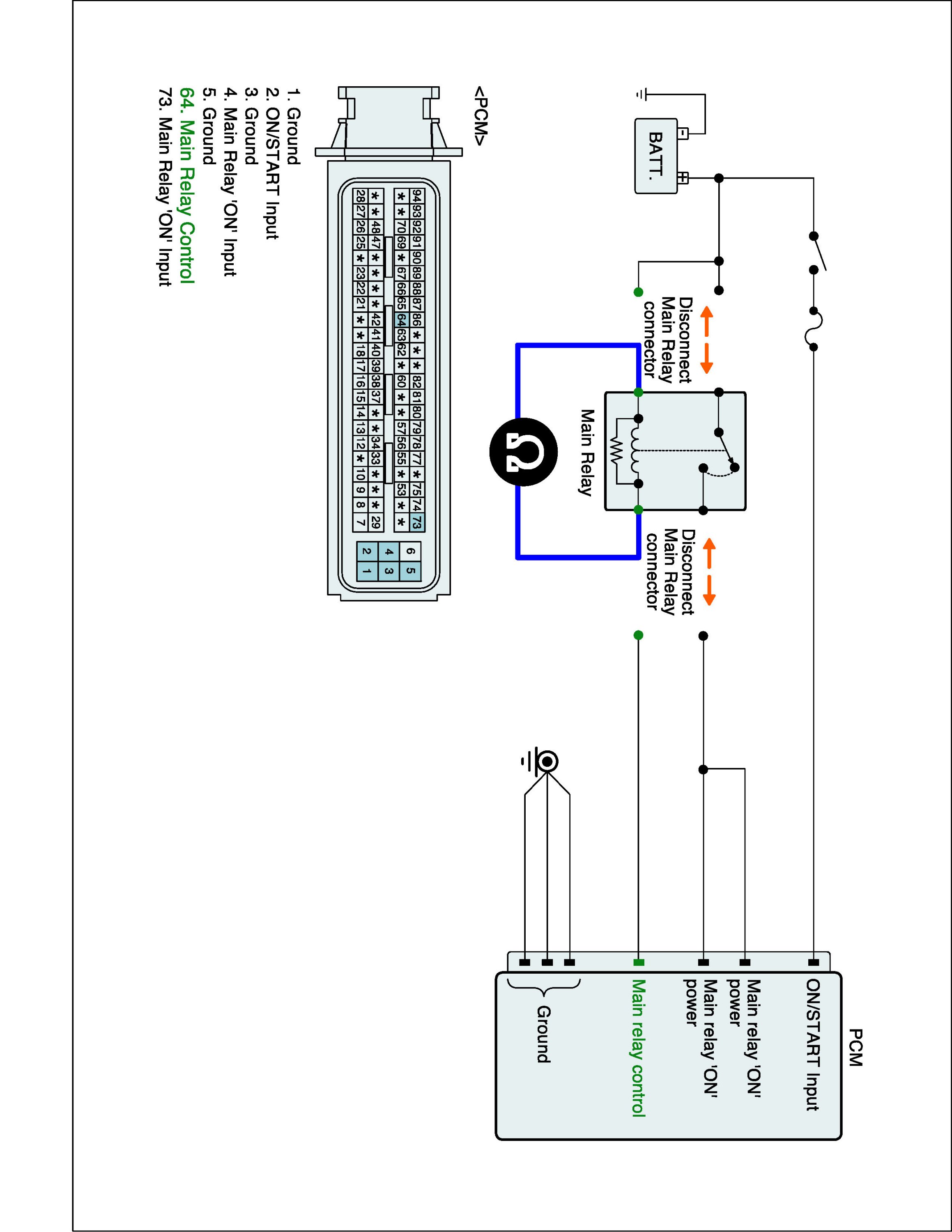

2. Measure resistance between power terminal and control terminal of the main relay (Component side).

Specification : Approx. 70 - 120 ohms at 20 °C (68 °F)

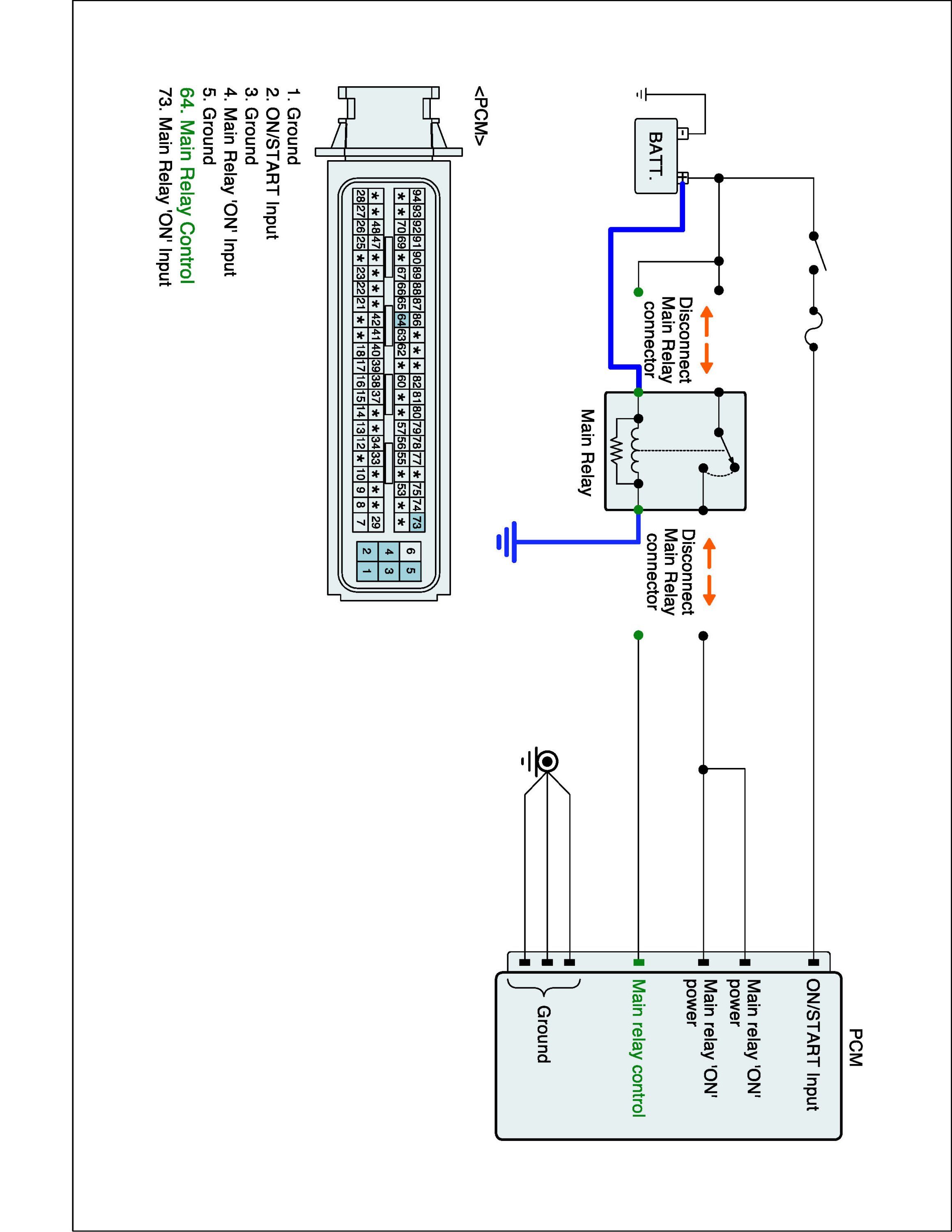

3. Apply 12V and a ground to power and control terminals of the main relay (Components side).
4. Check if the main relay works well when it is energized. (If the main relay works normally, a clicking sound can be heard.)

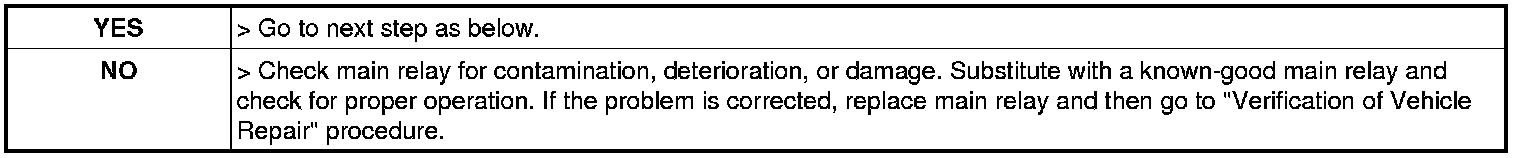

5. Does the main relay operate normally ?
