Component Inspection





Component Inspection

1. Ignition "OFF"

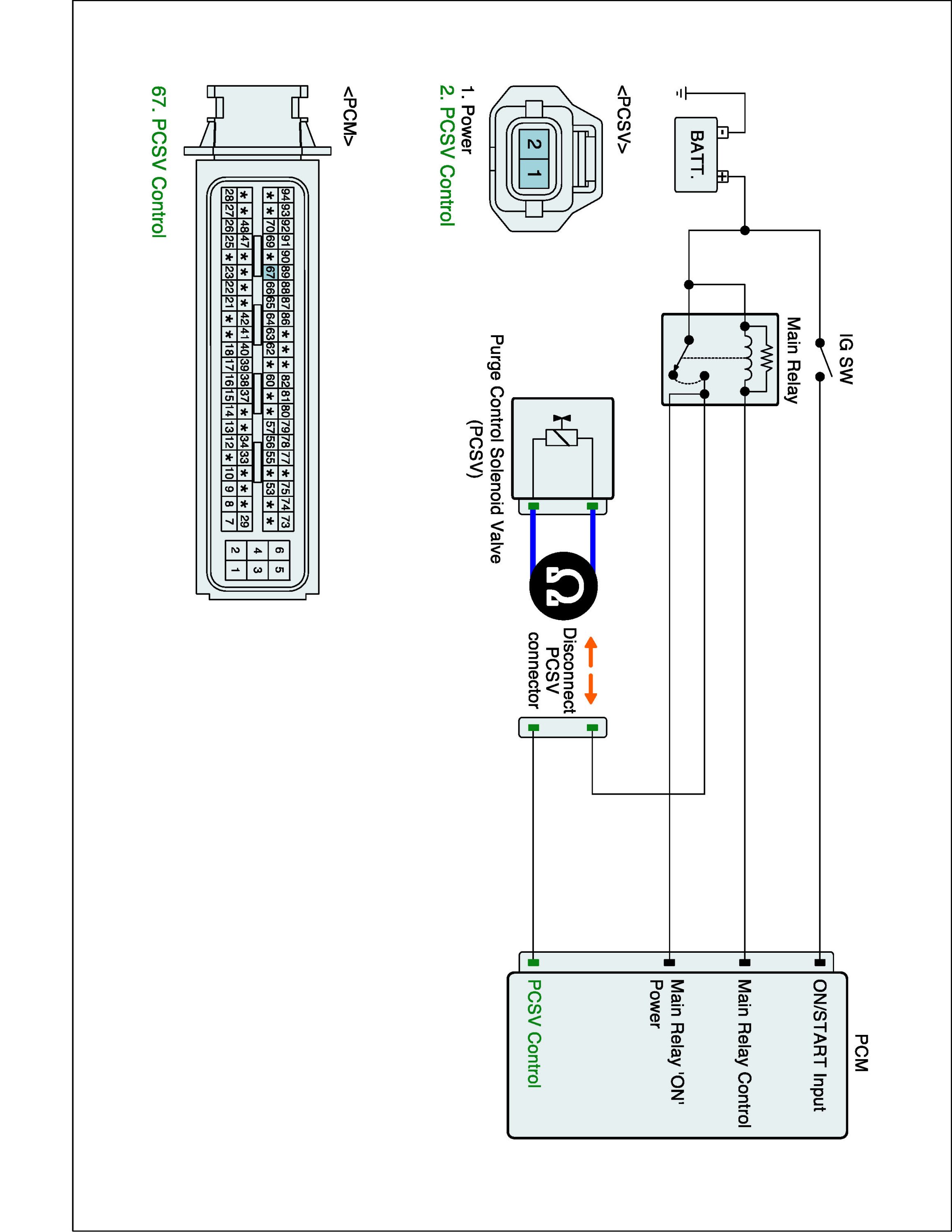

2. Disconnect PCSV connector
3. Measure resistance between power terminal and signal terminal of PCSV connector (Component side).

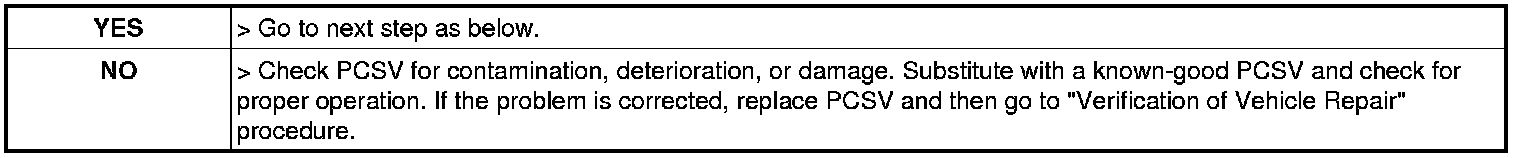

4. Is resistance within the specification ?
