Component Inspection





Component Inspection

1. Ignition "OFF"
2. Measure resistance between power and control terminals of HO2S (B1/S1) heater (Component Side).
Specification :

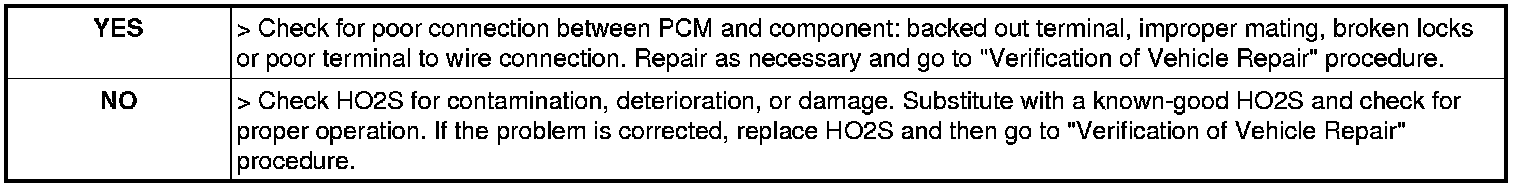

3. Is HO2S heater resistance display near the specified value ?
