Monitor Scantool Data





Monitor Scantool Data

EPS Type recognition
1. Connect scantool to Data Link Connector (DLC)
2. Ignition "OFF" and then Ignition "ON".

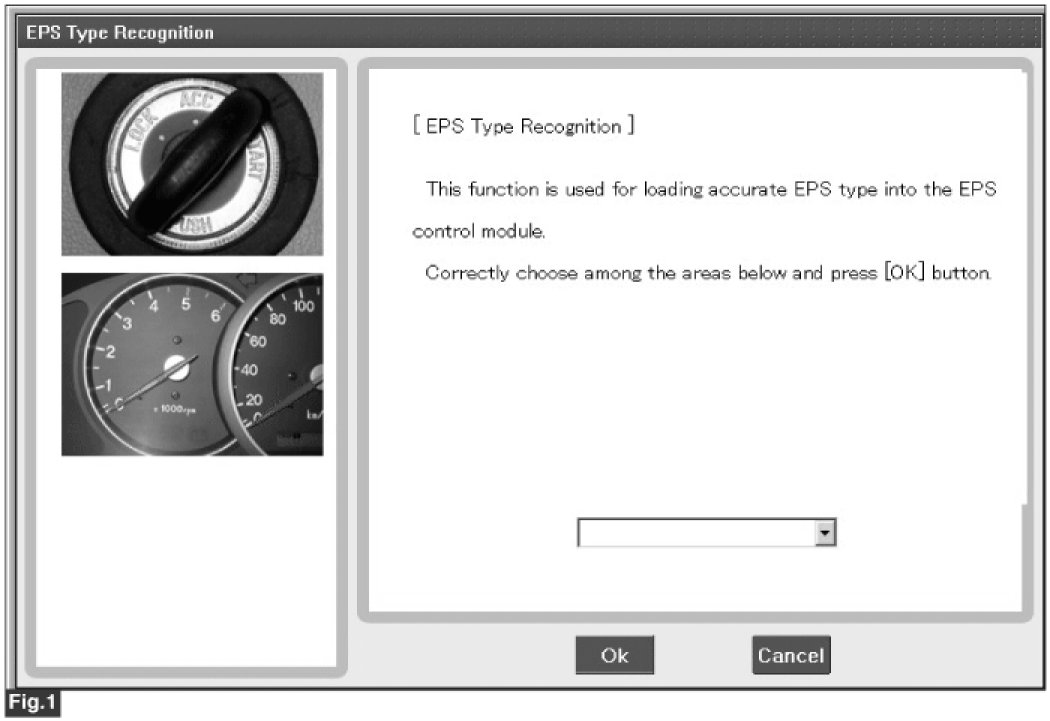

3. Choose the area type (figure 1).
4. Ignition "OFF" & Waiting 20 sec.
5. Ignition "ON".
6. Select "Diagnostic Trouble Codes (DTCs)" mode again.

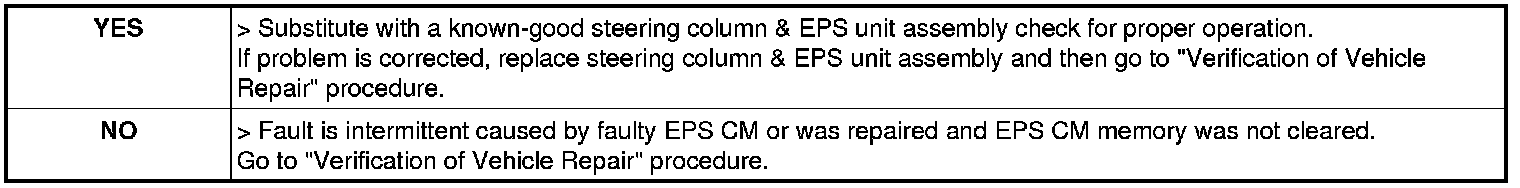

7. Are any DTCs present ?
