General Information

Component Location





General Description

The ESC is a system to stabilize a car during understeer and oversteer events by supplying appropriate wheel with braking pressure according to signal of yaw & G sensor, SAS, WSS, pressure sensor.

DTC Description

Under normal conditions, the inlet valves of all four wheels are not closed during control for longer than 1.28s or If the controller requests pressure-hold or pressure-decrease for longer than 1.28s, a fault is detected.
The ABS/ESC warning lamp is turned ON and the EBD warning lamp is turned OFF.

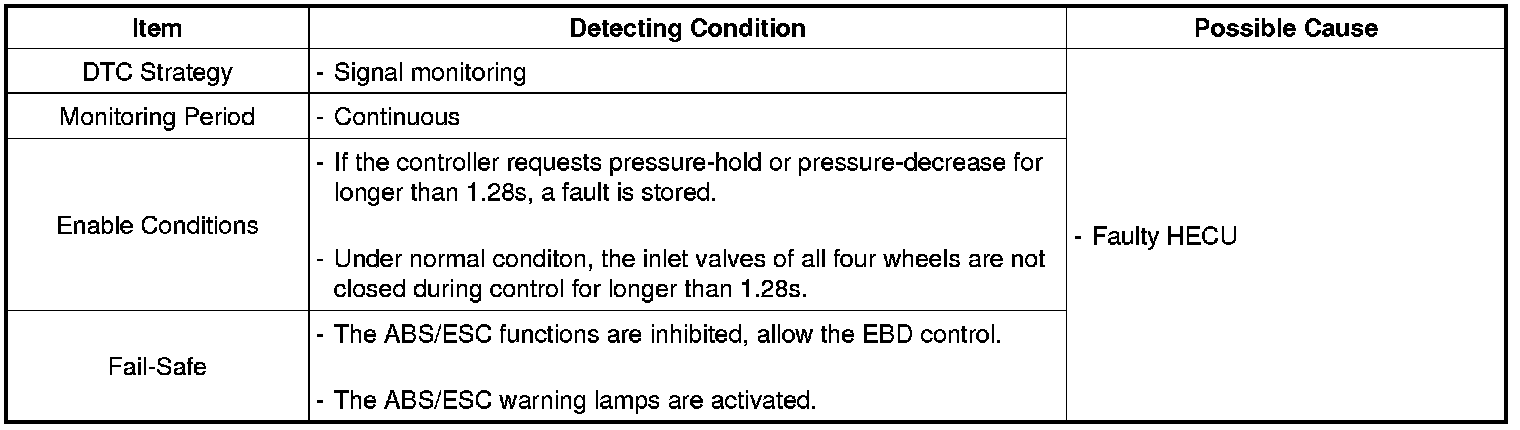

DTC Detecting Condition
