Component Inspection

Component Inspection

ESC switch Check
1. Ignition "OFF" & Engine "OFF".
2. Disconnect the ESC switch connector.
3. Measure resistance between power terminal and signal terminal of the ESC switch connector.

Specification : Approx. below 1 ohms - (In case of pressing the ESC switch)
Approx. Infinity ohms - (In case of not pressing the ESC switch)

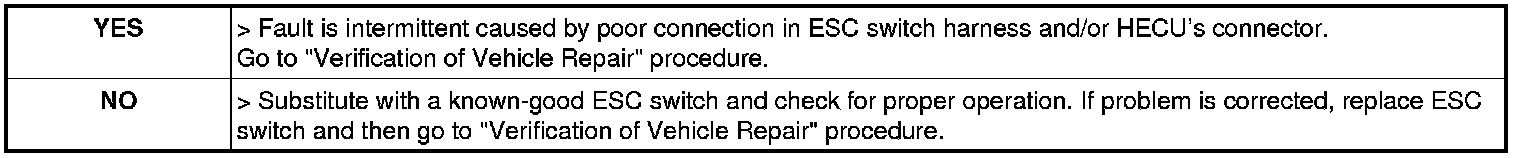

4. Is the measured resistance within specifications ?
