Scantool Diagnostics

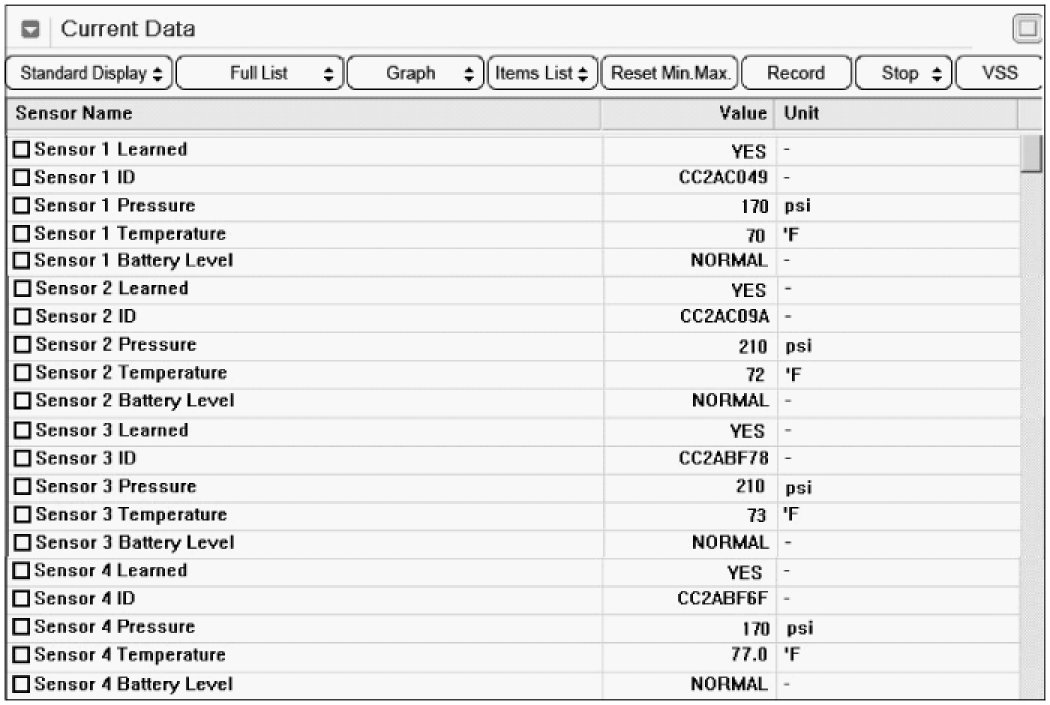

Monitor Scantool Data

1. Park the vehicle on an even ground.
2. Connect scantool to Data Link Connector (DLC).
3. IG "ON"
4. Monitor the parameters of 4 active WE sensors data.

Specification : the parameters related to 4 active WE sensors are displayed normally.

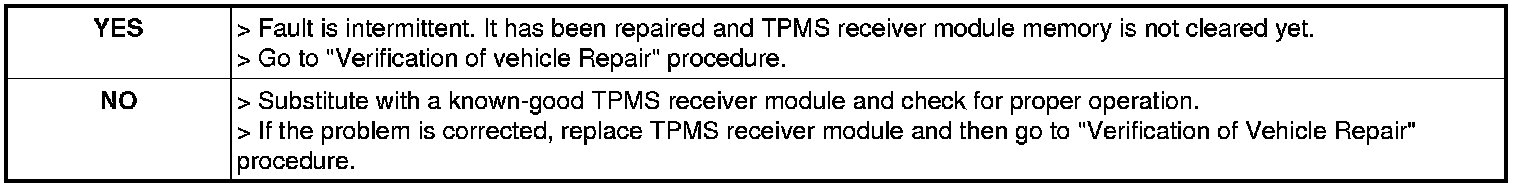

5. Are the parameters normal ?
