Monitor Scantool data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Maintain the vehicle standing still.
4. Monitor the "Lateral Acceleration Sensor, Yaw Rate Sensor" parameter on the Scantool.

Specification : Approx. Lateral Acceleration Sensor : 0G
Approx. Yaw Rate Sensor : -0 deg/s

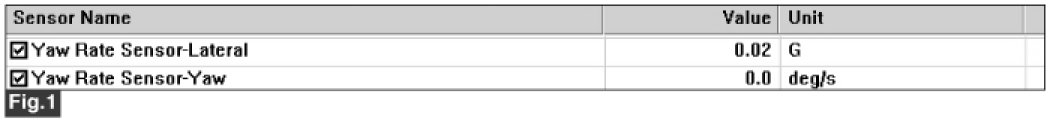

fig. 1) Test Condition : Ignition "ON" & Engine "OFF".
Normal data

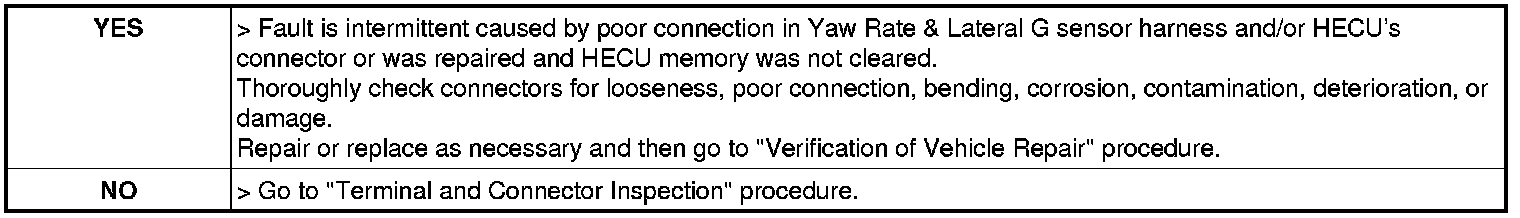

5. Is parameter displayed within specifications ?
