Monitor Scantool data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Ignition "ON" & Engine "ON".
3. Monitor the "SAS CALIBRATED" parameters on the Scantool.




Fig 1) SAS Calibrate normal data
- YES : SAS calibrated, NO : SAS not calibrated.

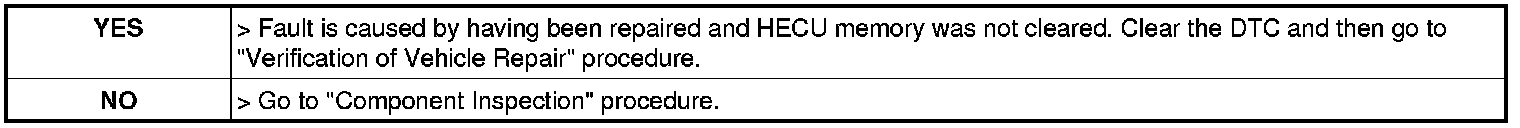

4. Is parameter displayed within specifications ?
