Mechanical Specifications

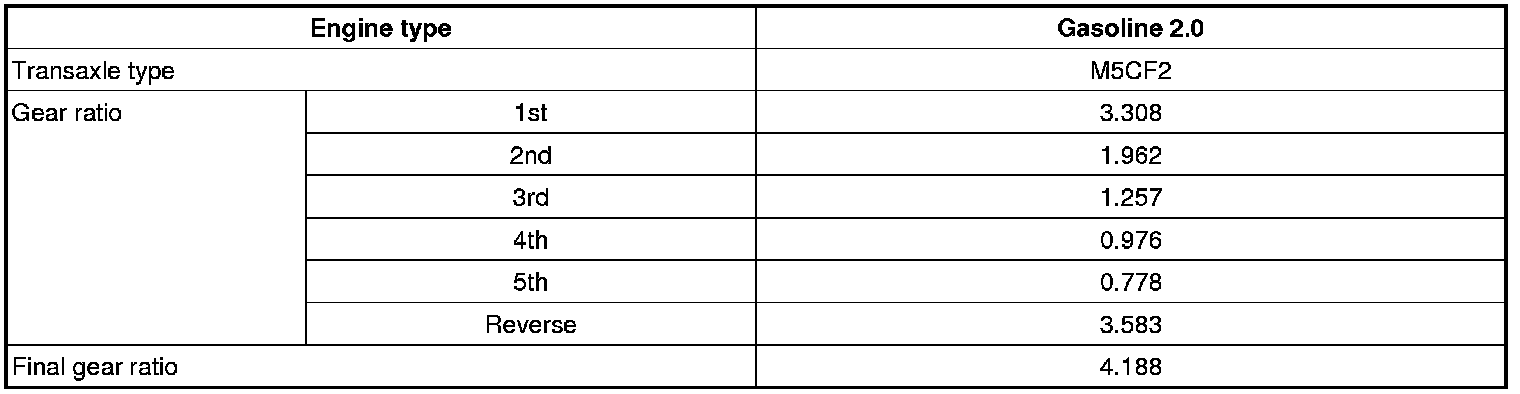

Specifications

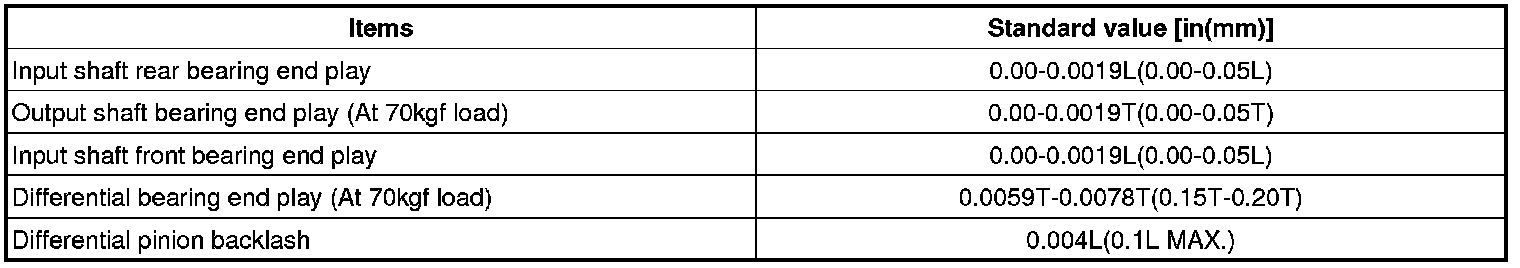

Service Standard





T: Indicate tightening of -(minus) direction of end play
L: Indicate loosening of +(plus) direction of end play

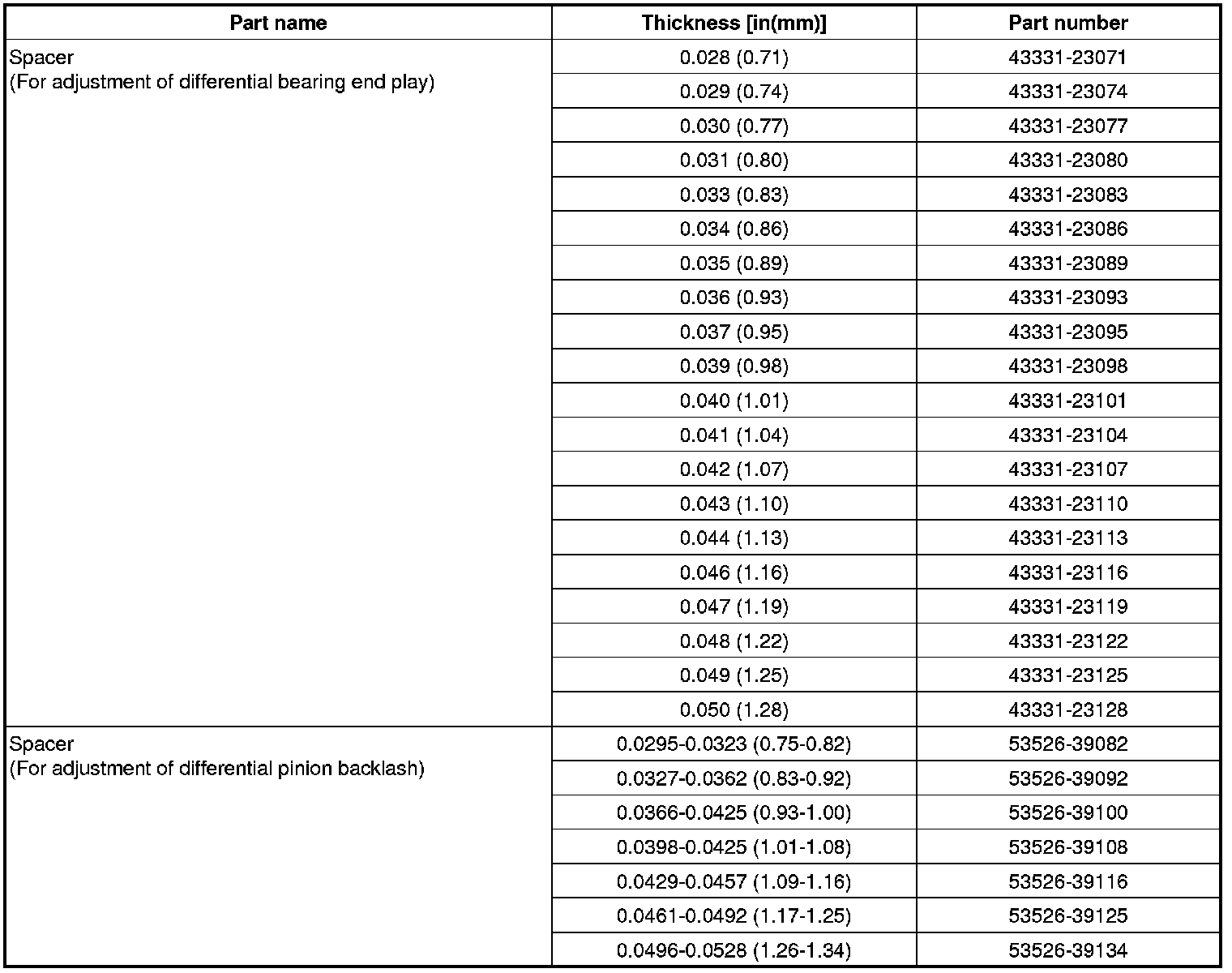

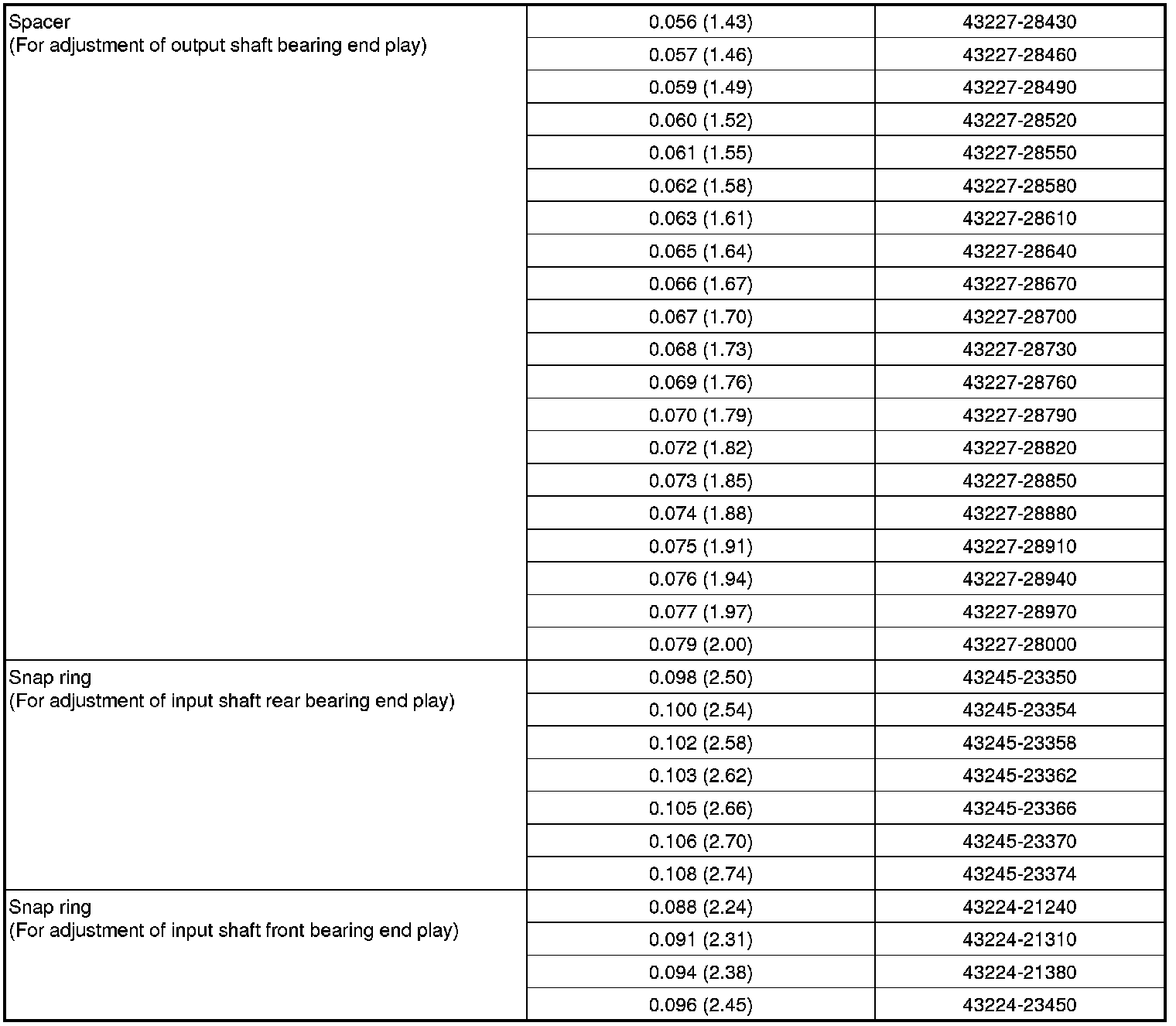

Snap Ring And Spacer For Adjustment

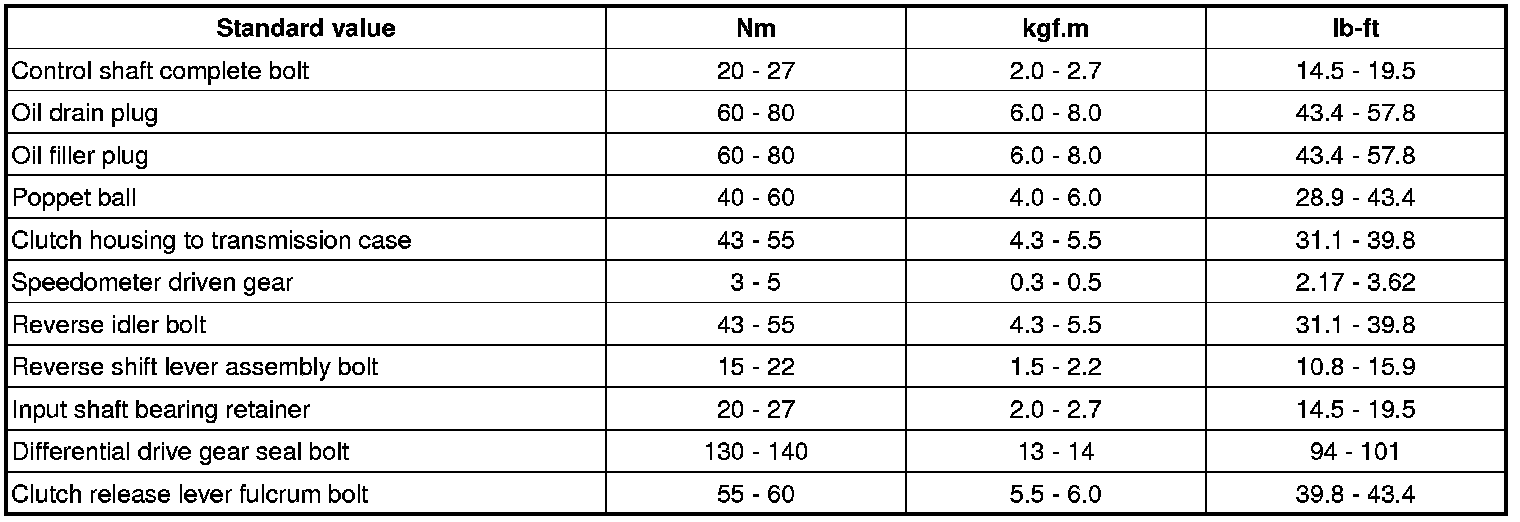

Tightening Torques

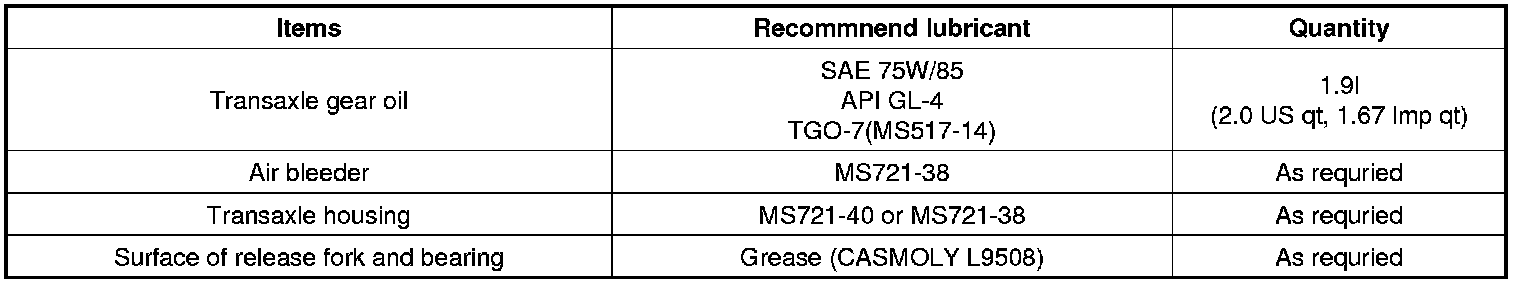

Lubricants
