Seals and Gaskets: Service and Repair

Service Adjustment Procedure

Drive Shaft Oil Seal

Replace
1. Disconnect the drive shaft from the transaxle. (see "DS" group)

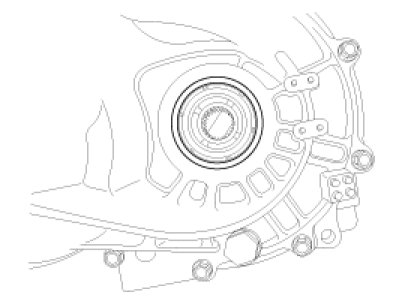

2. Using a flat-tip screwdriver, remove the oil seal.

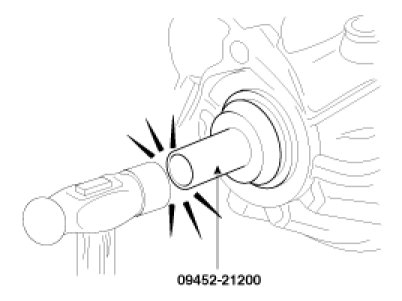

3. Using the special tool(09452-21200), tap the drive shaft oil seal into the transaxle.
