Component Tests and General Diagnostics

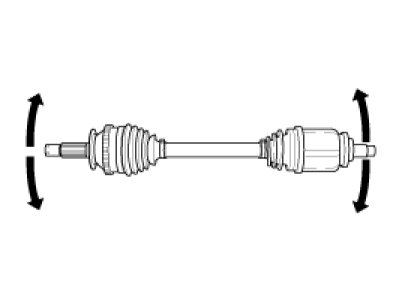

Inspection

1. Check the driveshaft boots for damage and deterioration.
2. Check the boots for grease leak.
3. Check the ball joint for wear and damage.
4. Check the splines for wear and damage.
5. Check the dynamic damper for cracks, wear and position.




6. Check the driveshaft for cracks and wears.
