Mechanical Specifications

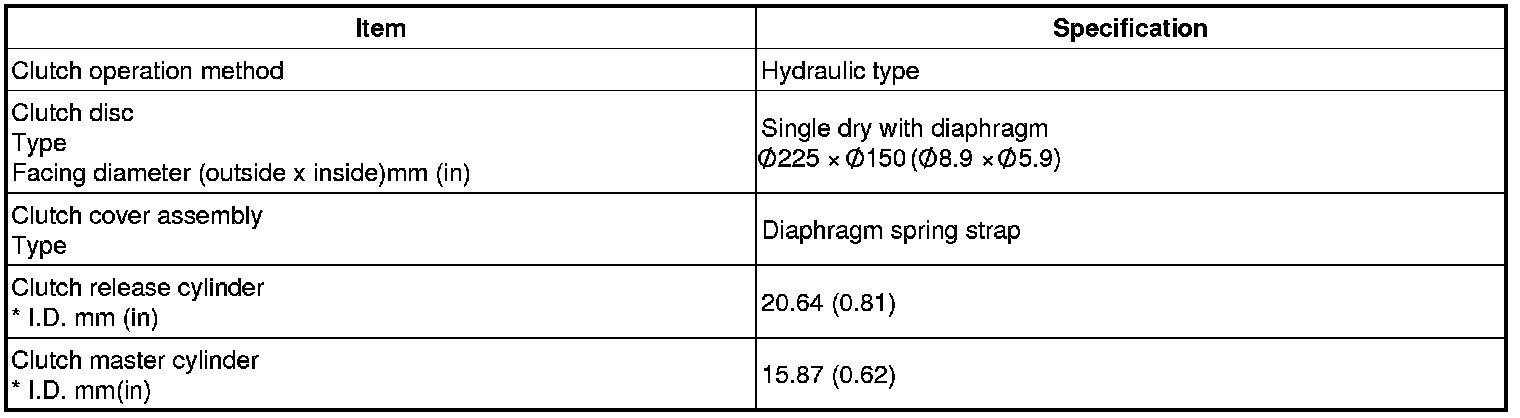

Specifications





* I.D: Inside diameter

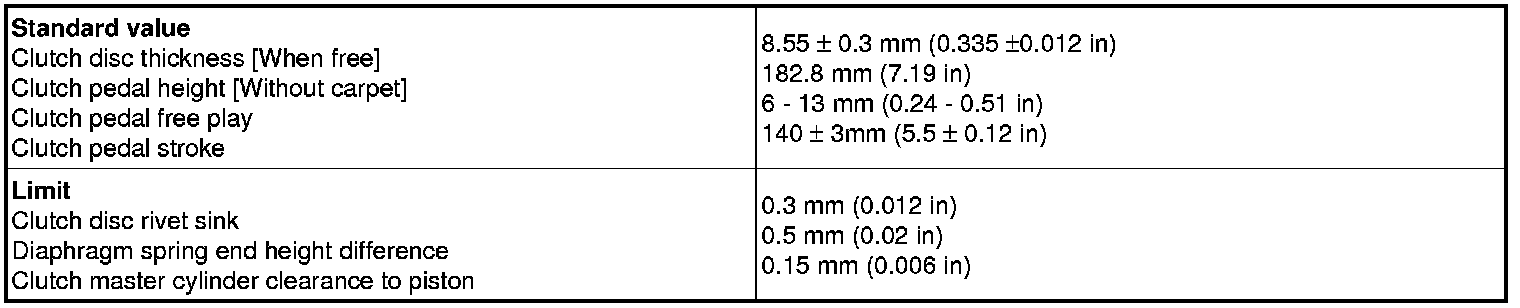

Service Standard

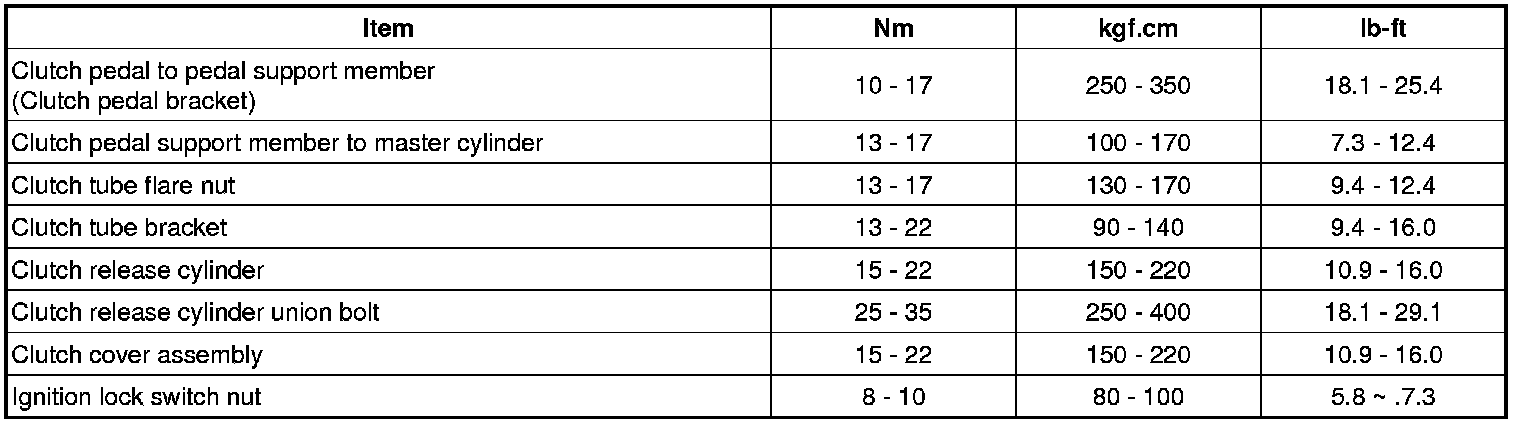

Tightening Torques






Adjustments

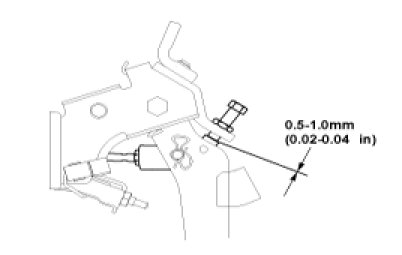

After adjustment, tighten the bolt so that the clearance with pedal stopper becomes 0.5 mm (0.02 in) to 1.0 mm (0.04 in) and secure with lock nut.
