Steering System

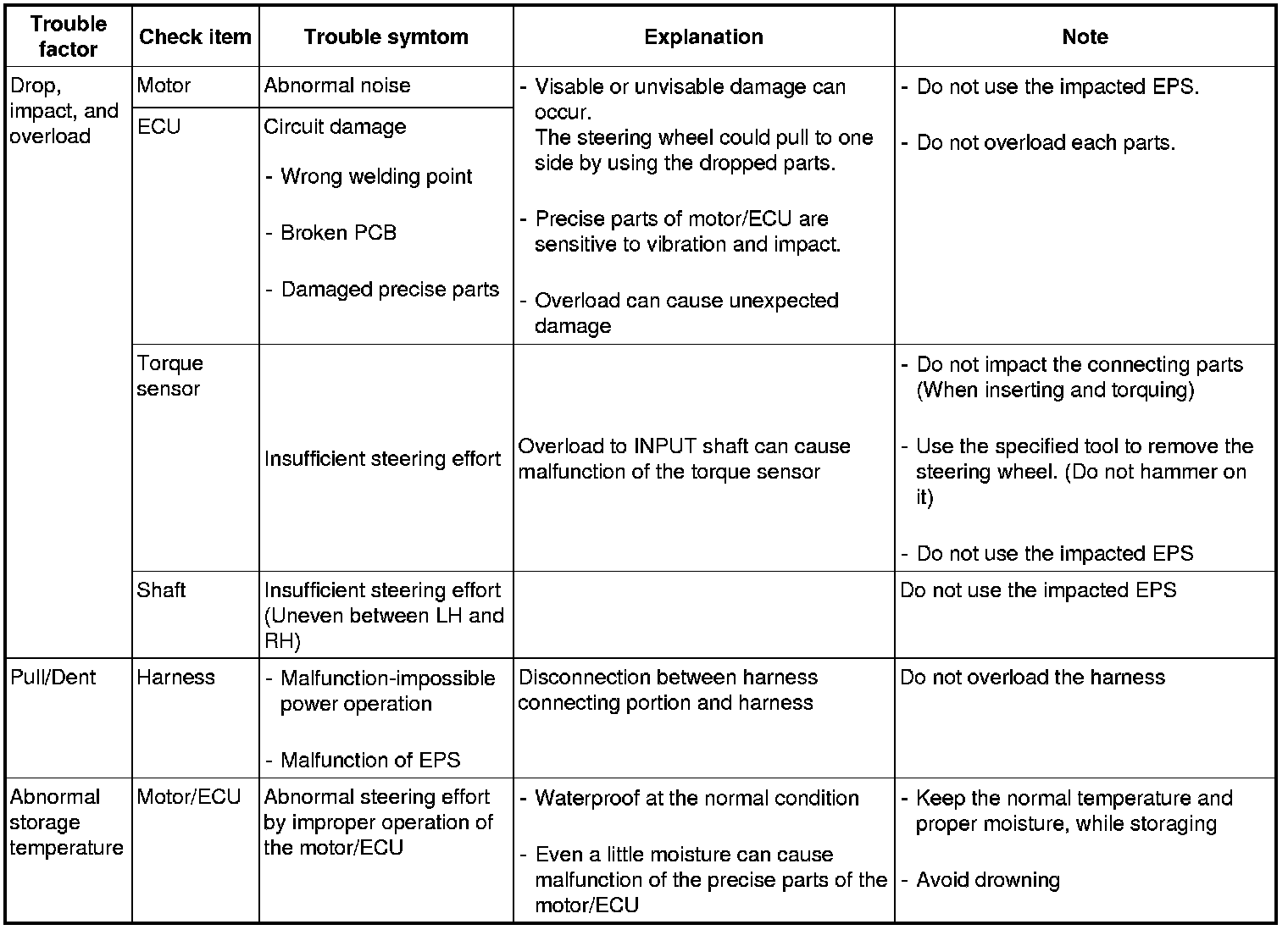

Notes With Regard To Diagnosis





1. Do not impact the electronic parts, if they are dropped or impacted, replace them with new ones.
2. Avoid heat and moisture to the electronic parts.
3. Do not contact the connect terminal to avoid deformation and static electricity.
4. Do not impact the motor and torque sensor parts, if they are dropped or impacted, replace them with new ones.
5. The connector should be disconnected or connected with IG OFF.
