Steering Column Cover: Service and Repair





Replacement

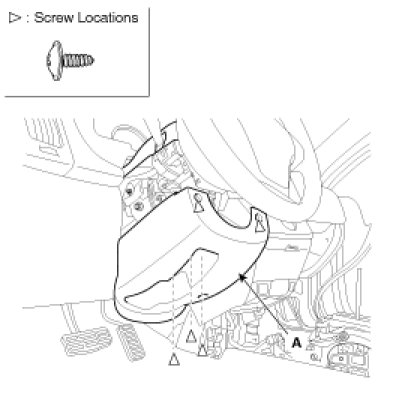

Shroud Replacement
1. Loosen the screws.
2. Remove the shroud assembly (A).




3. Installation is the reverse of removal.
