Starter Solenoid Test

Starter Solenoid Test

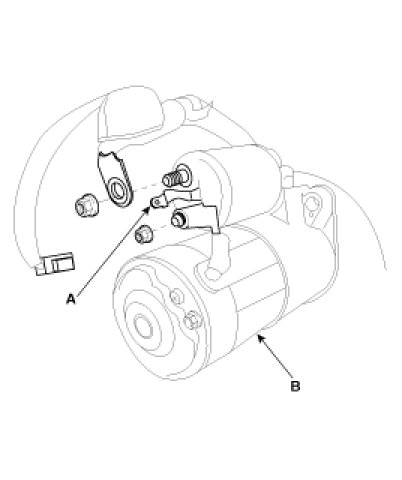

1. Check the hold-in coil for continuity between the S terminal(A) and the armature housing(B) (ground). The coil is OK if there is continuity.




2. Check the pull-in coil for continuity between the S and M terminals. The coil is OK if there is continuity.
