Seat Belt Height Adjuster: Service and Repair

Replacement

Height Adjuster Replacement
1. Remove the following items first.
A. Front seat assembly.
B. Door scuff trim.
C. Front seat belt.
D. Center pillar trim.

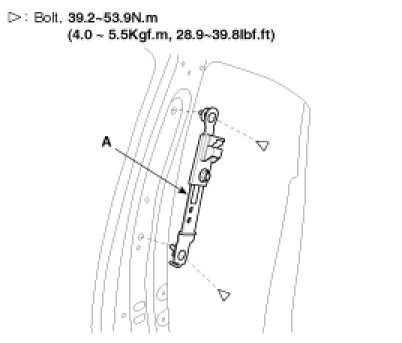

2. After loosening the mounting bolt, then remove the height adjuster (A).




3. Installation is the reverse of removal.
