Seat Belt Buckle: Service and Repair

Replacement

Front Seat Belt Buckle Replacement
1. Remove the following items first.
A. Front seat assembly.
2. Remove the wire harness of buckle from seat.

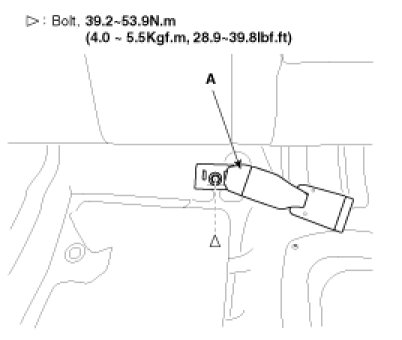

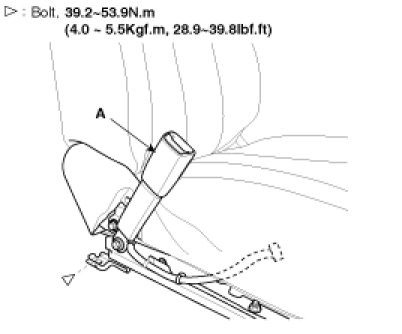

3. Remove the seat belt buckle (A).




4. Installation is the reverse of removal.

Rear Seat Belt Buckle Replacement
1. After cushion frame hinge mounting bolt, fold the cushion.

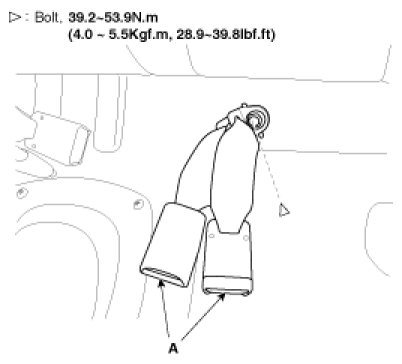

2. Remove the seat belt buckle (A).








3. Installation is the reverse of removal.
