Fuel Filler Neck: Service and Repair

Removal

1. Disconnect the fuel filler hose (A), the leveling hose (B) and the vacuum hose (C).

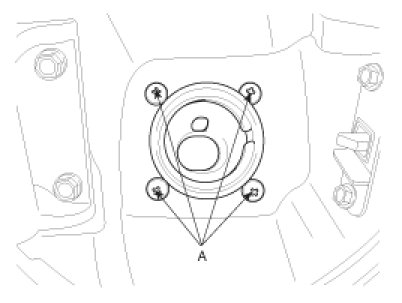

2. Open the fuel filler door and unfasten the filler-neck assembly mounting screws (A).




3. Remove the rear-LH wheel, tire, and the inner wheel house.

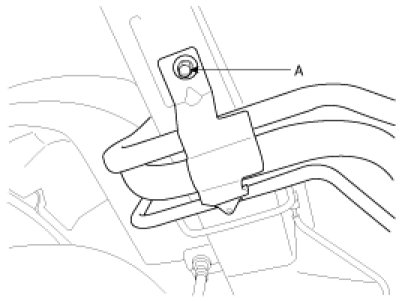

4. Remove the bracket mounting bolts (A) and remove the filler-neck assembly.






Installation

1. Installation is reverse of removal.
