Home >> Hyundai >> 2009 >> Elantra L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Fuel Pump >> Testing and Inspection

Fuel Pump: Testing and Inspection

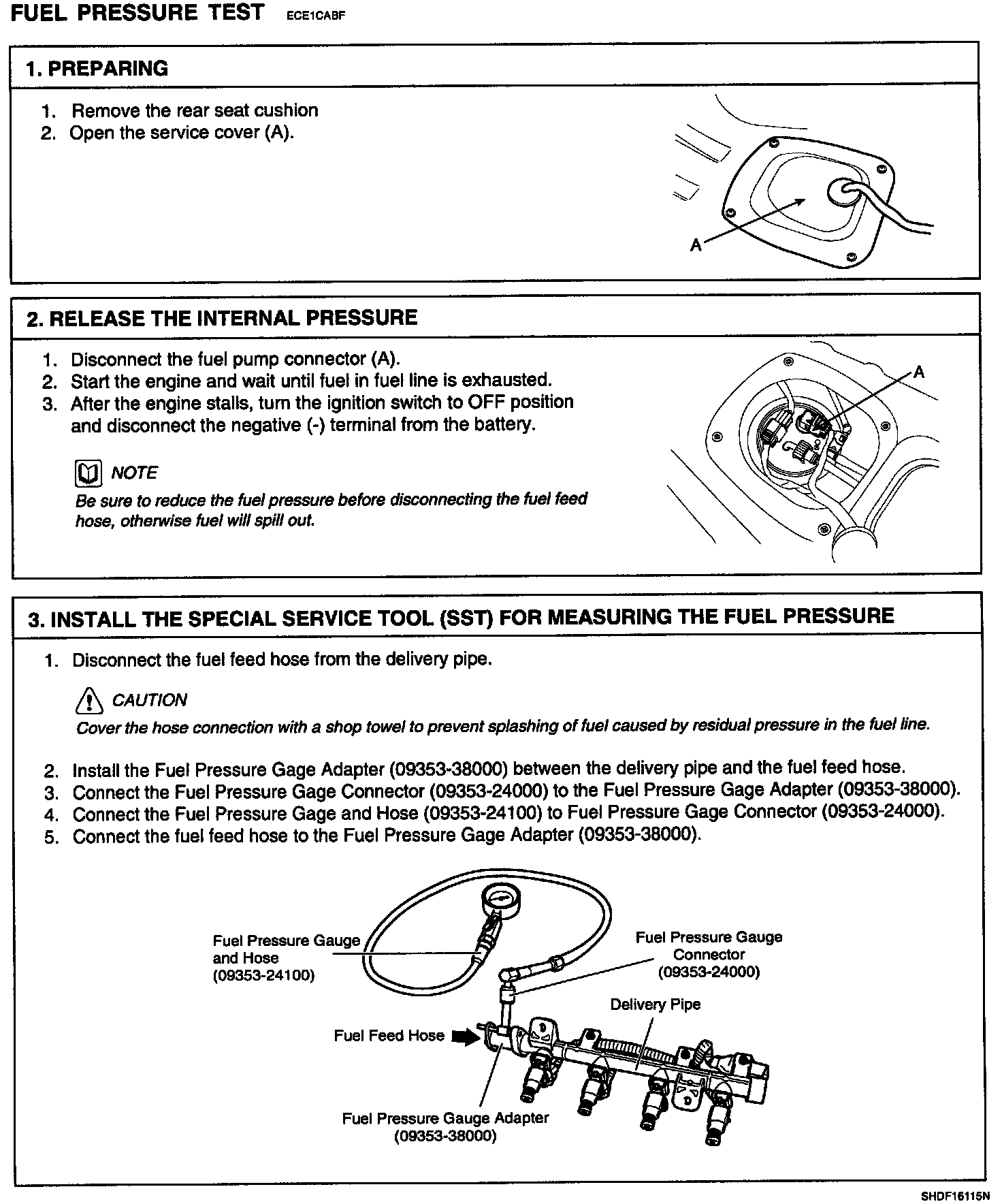

Fuel Pressure Test Part 1 - 3:

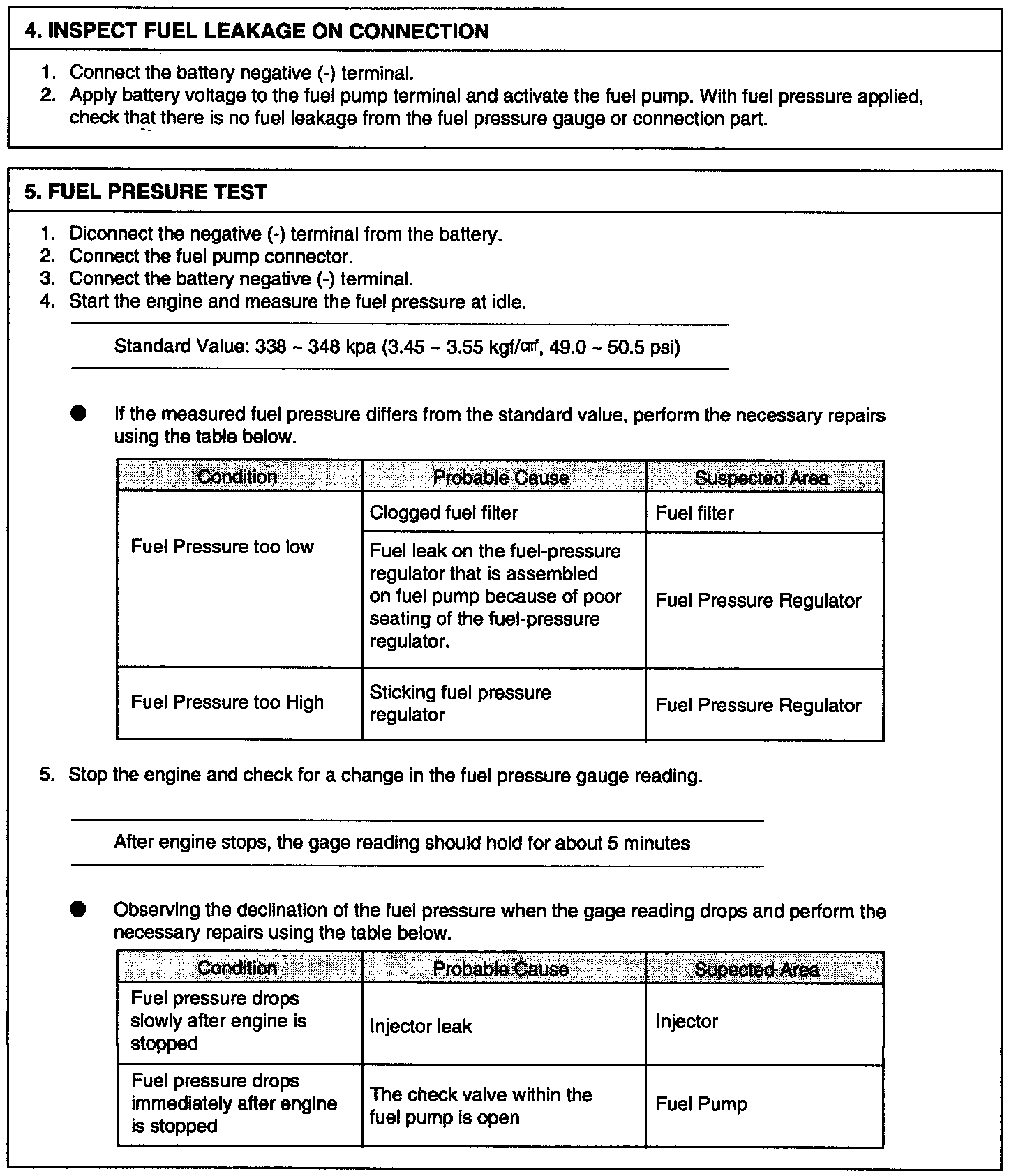

Fuel Pressure Test Part 4 - 5:

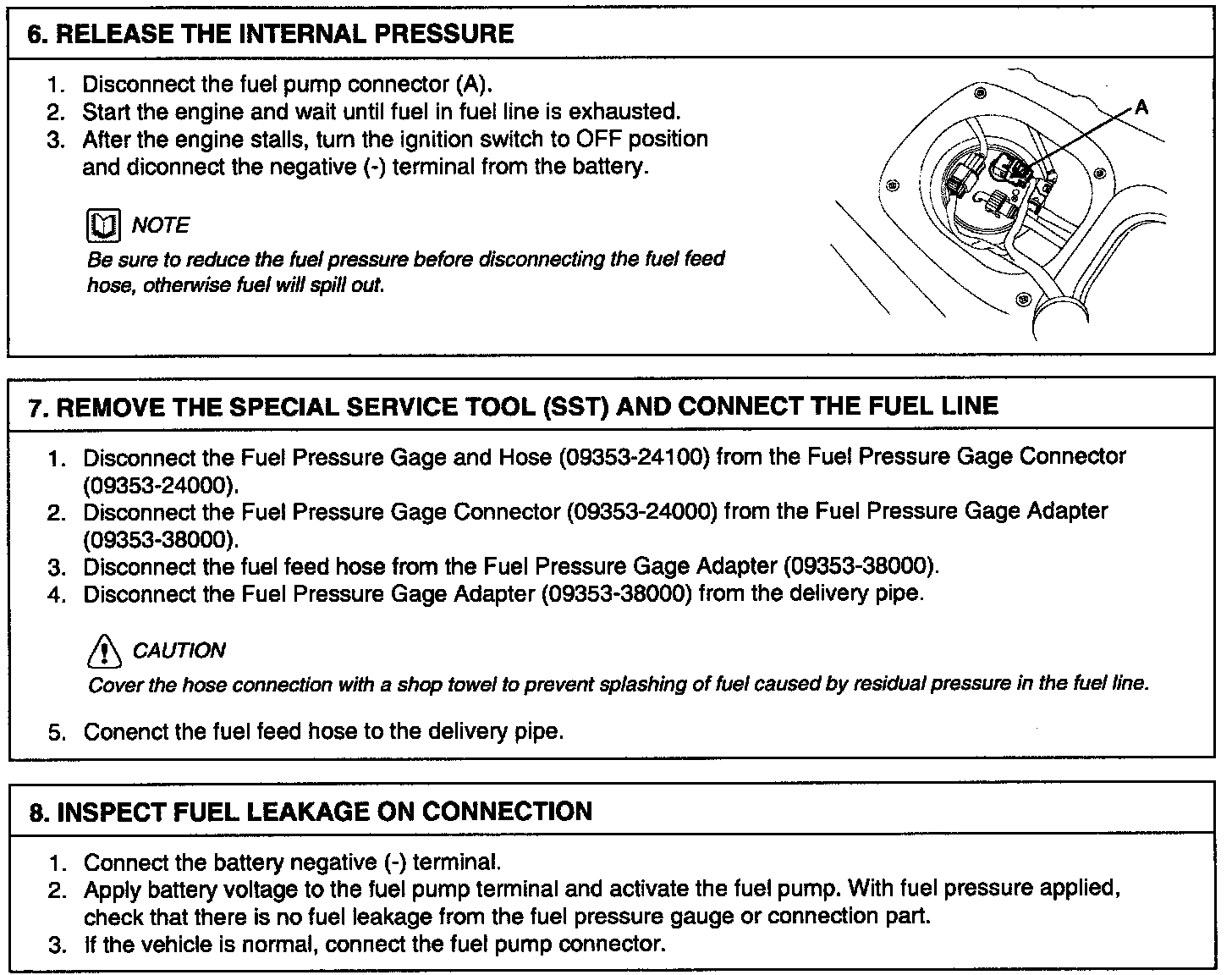

Fuel Pressure Test Part 6 - 8:
