Positive Crankcase Ventilation Valve: Service and Repair

Removal

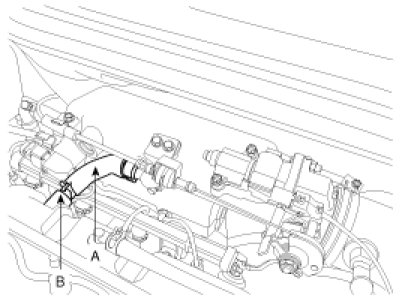

1. Disconnect the vacuum hose (A) and remove the PCV valve (B).





Installation

Install the PCV valve and tighten to the specified torque.

PCV Valve installation :
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7lb-ft)
