Evaporative Emission Control Canister: Service and Repair

Removal

1. Remove the fuel tank .

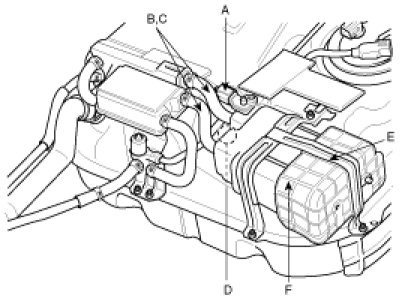

2. Disconnect the fuel tank pressure sensor connector (A).




3. Disconnect the vacuum hoses (B,C) from the canister.
4. Disconnect the vacuum tube quick-connector (D) from the canister.
5. Remove the canister band (E), and then remove the canister (F) from the fuel tank.

Installation

1. Installation is in reverse order of removal.
