Pinout Values and Diagnostic Parameters

Engine Control Module (ECM)

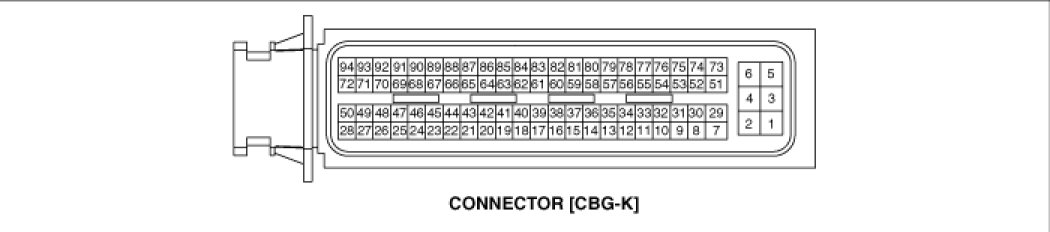

1. Harness Connector

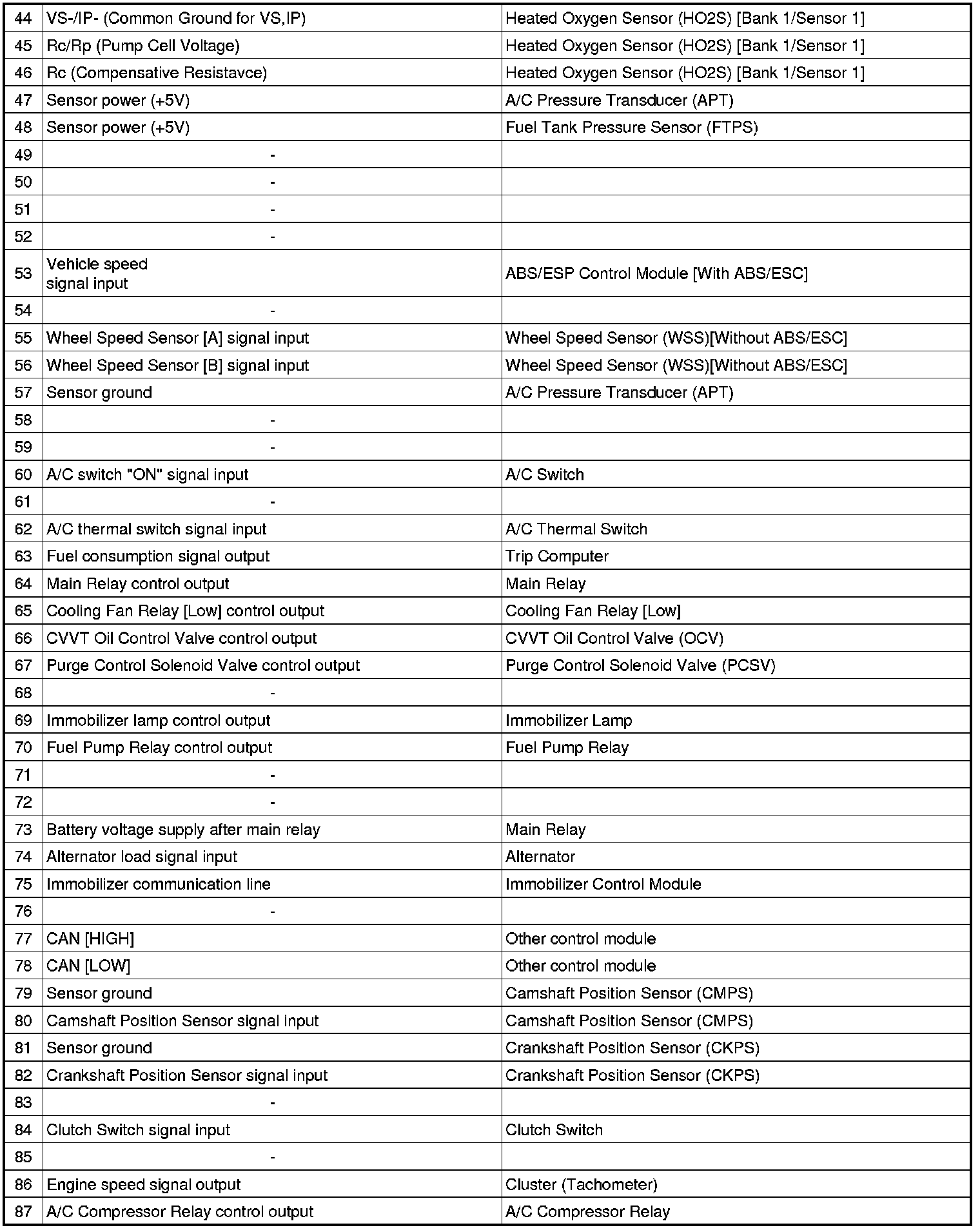

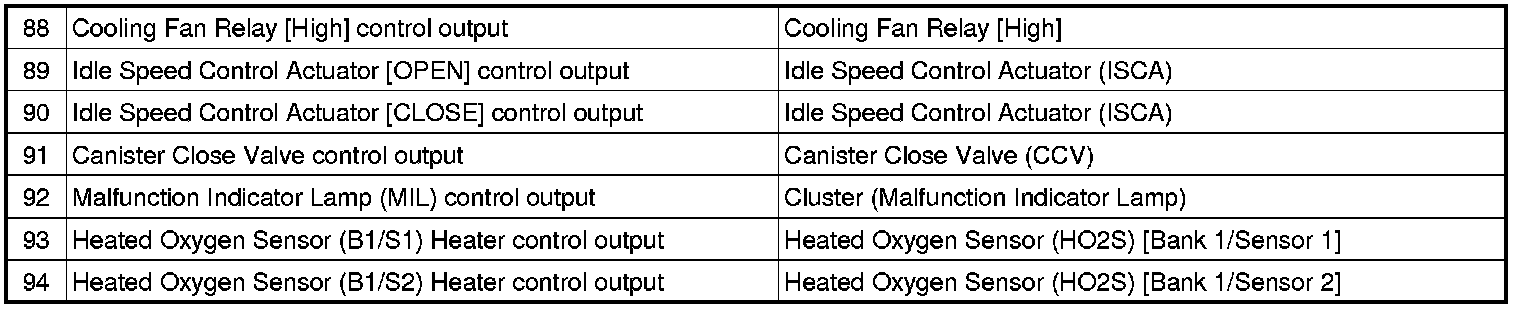

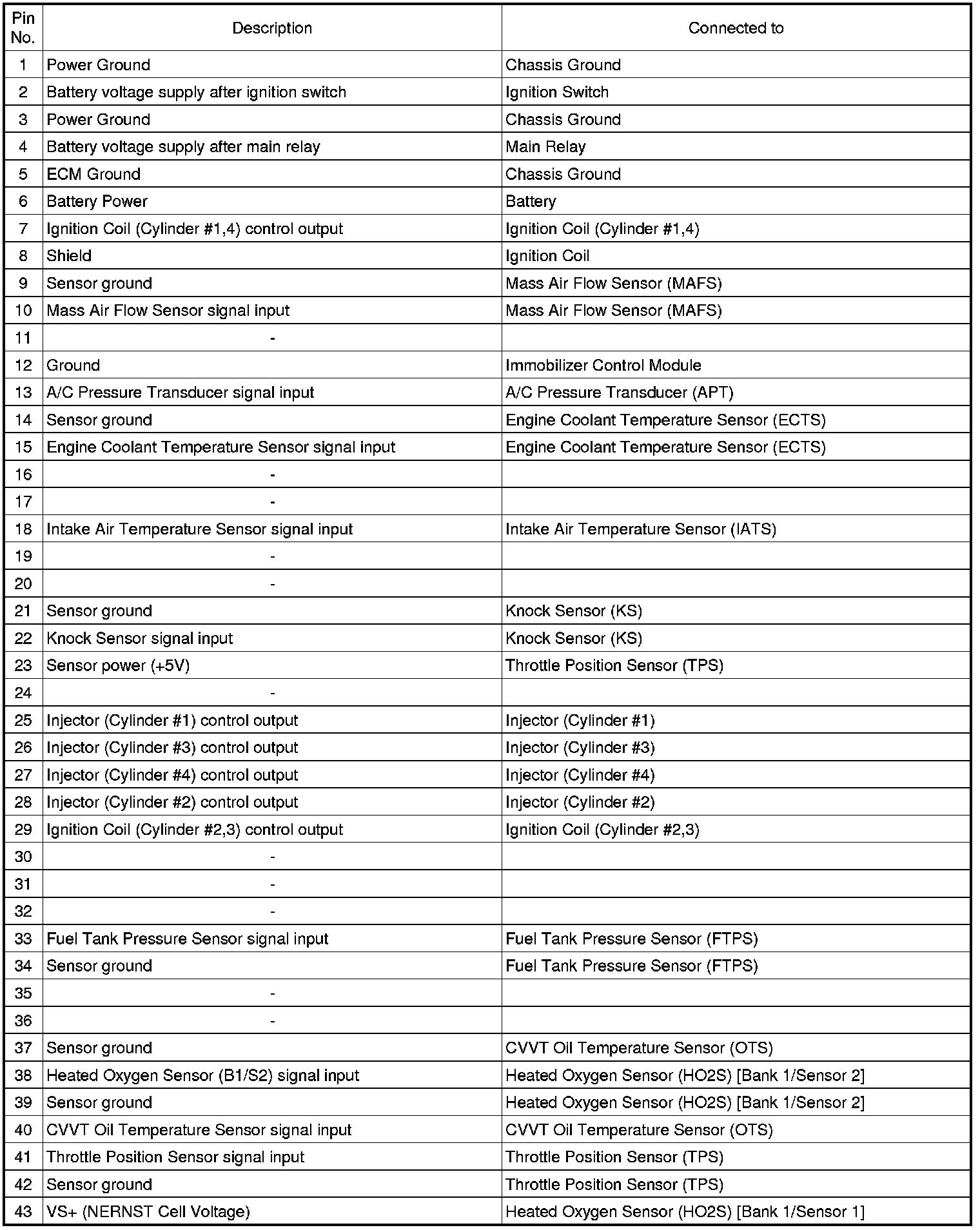

2. Terminal Function
Connector [CBG-K]

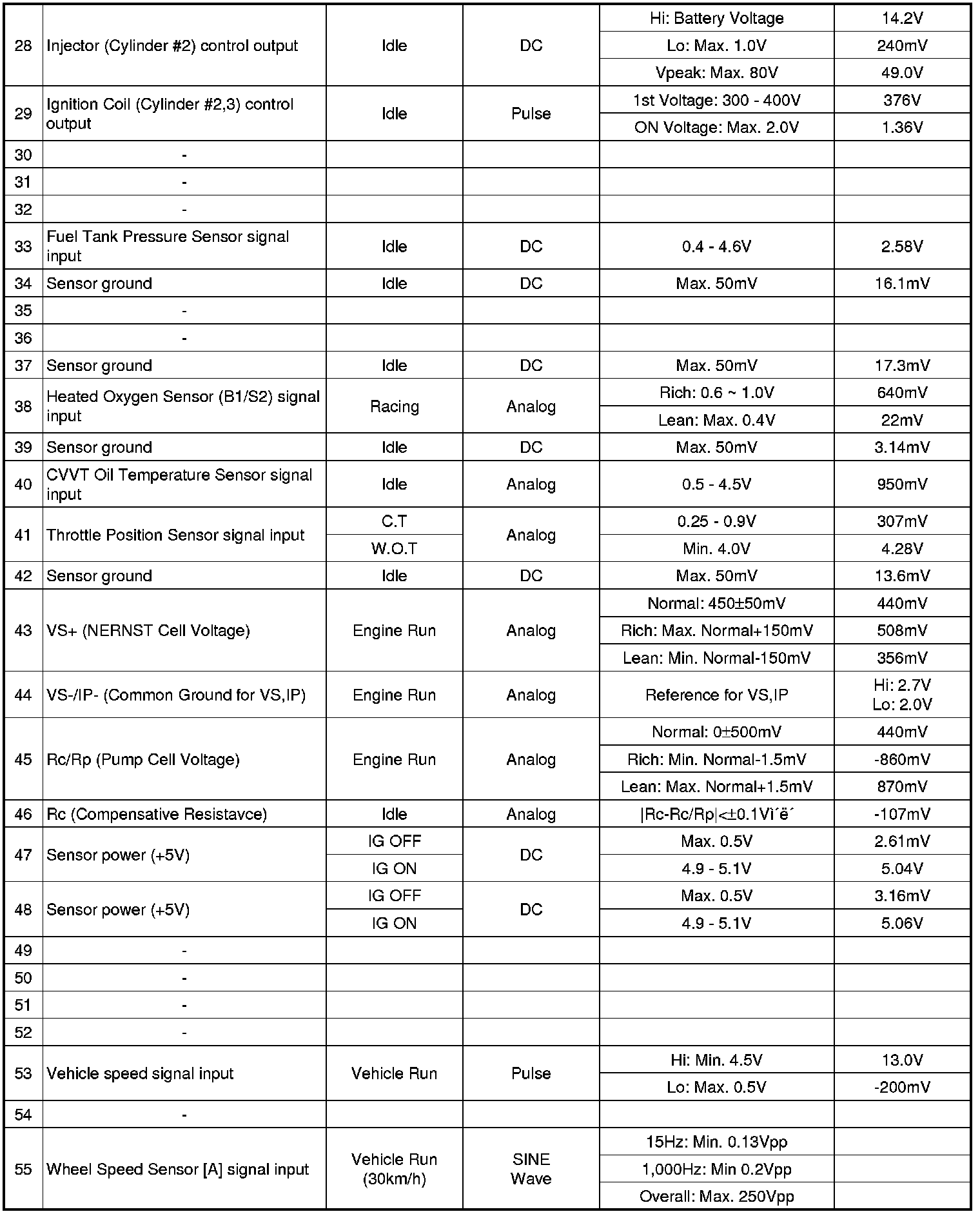

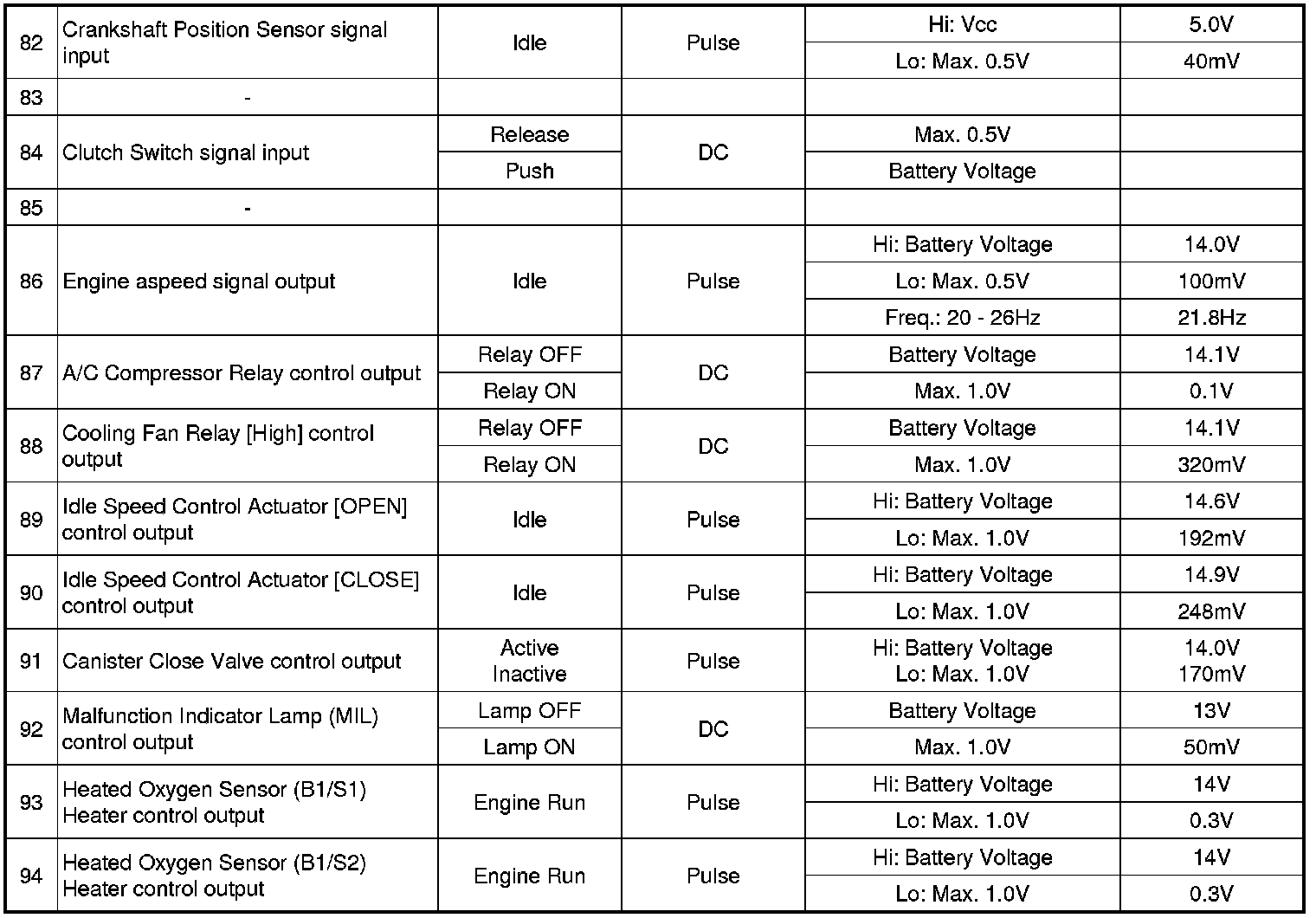

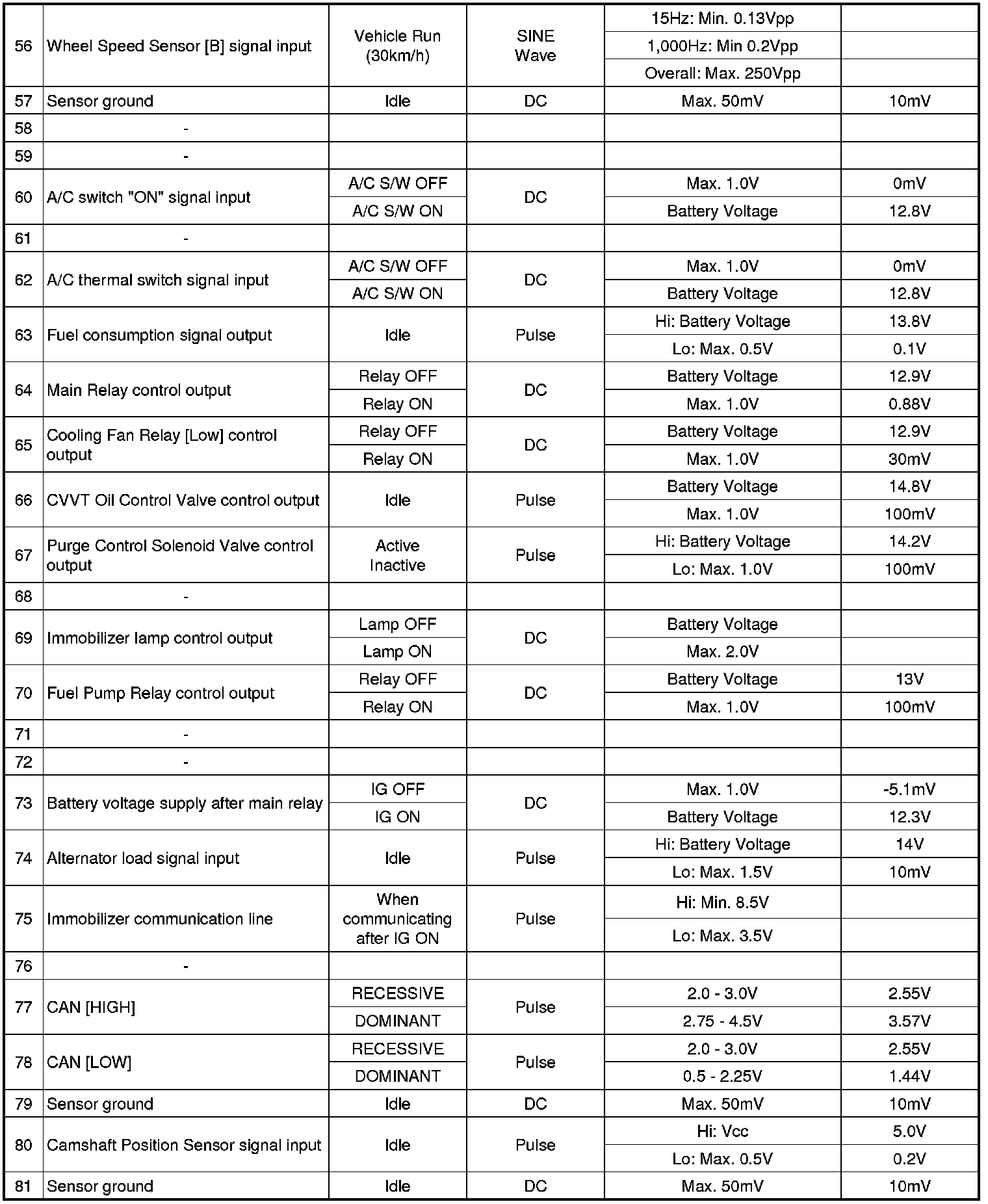

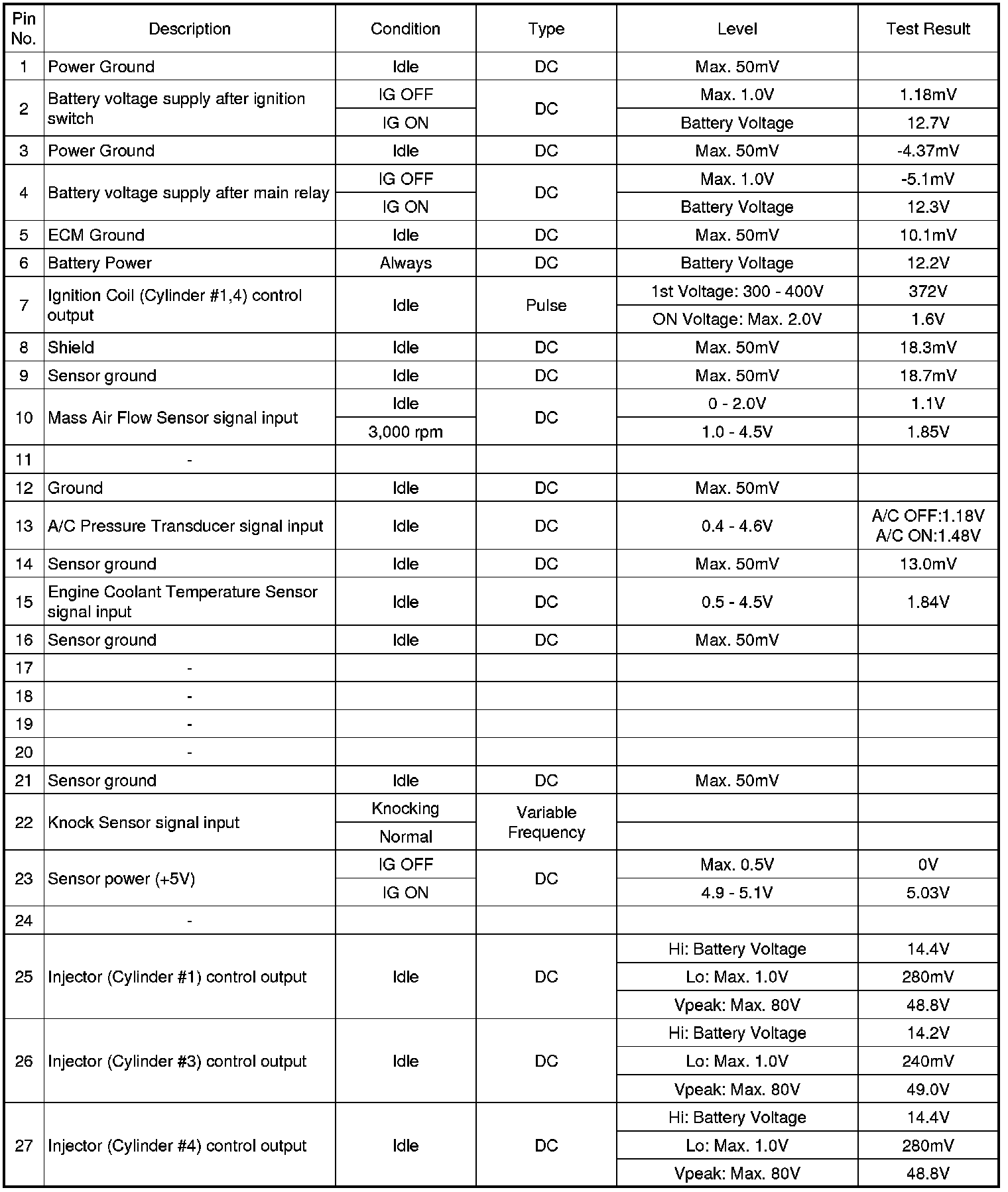

3. Terminal Input/output Signal
Connector [CBG-K]

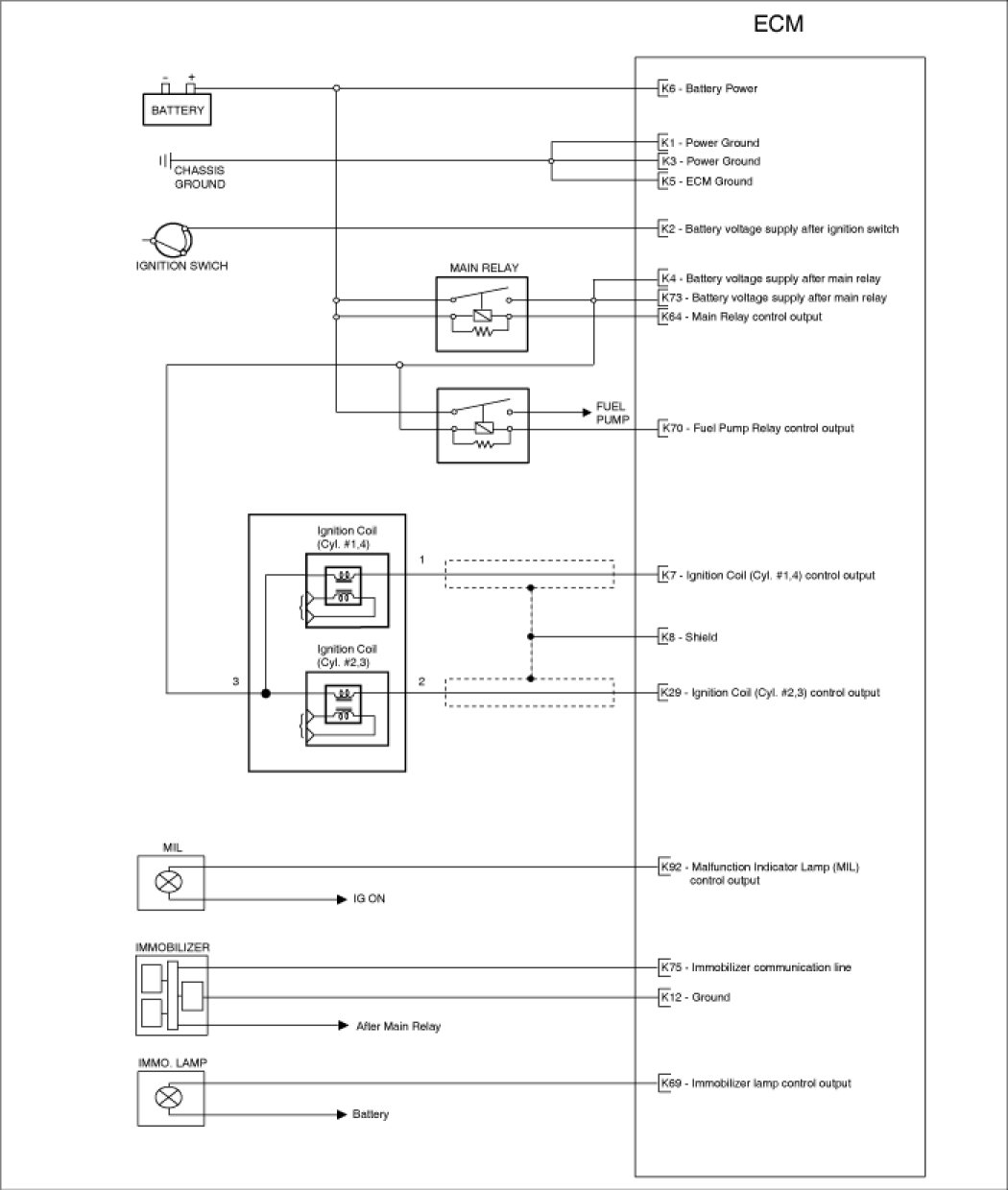

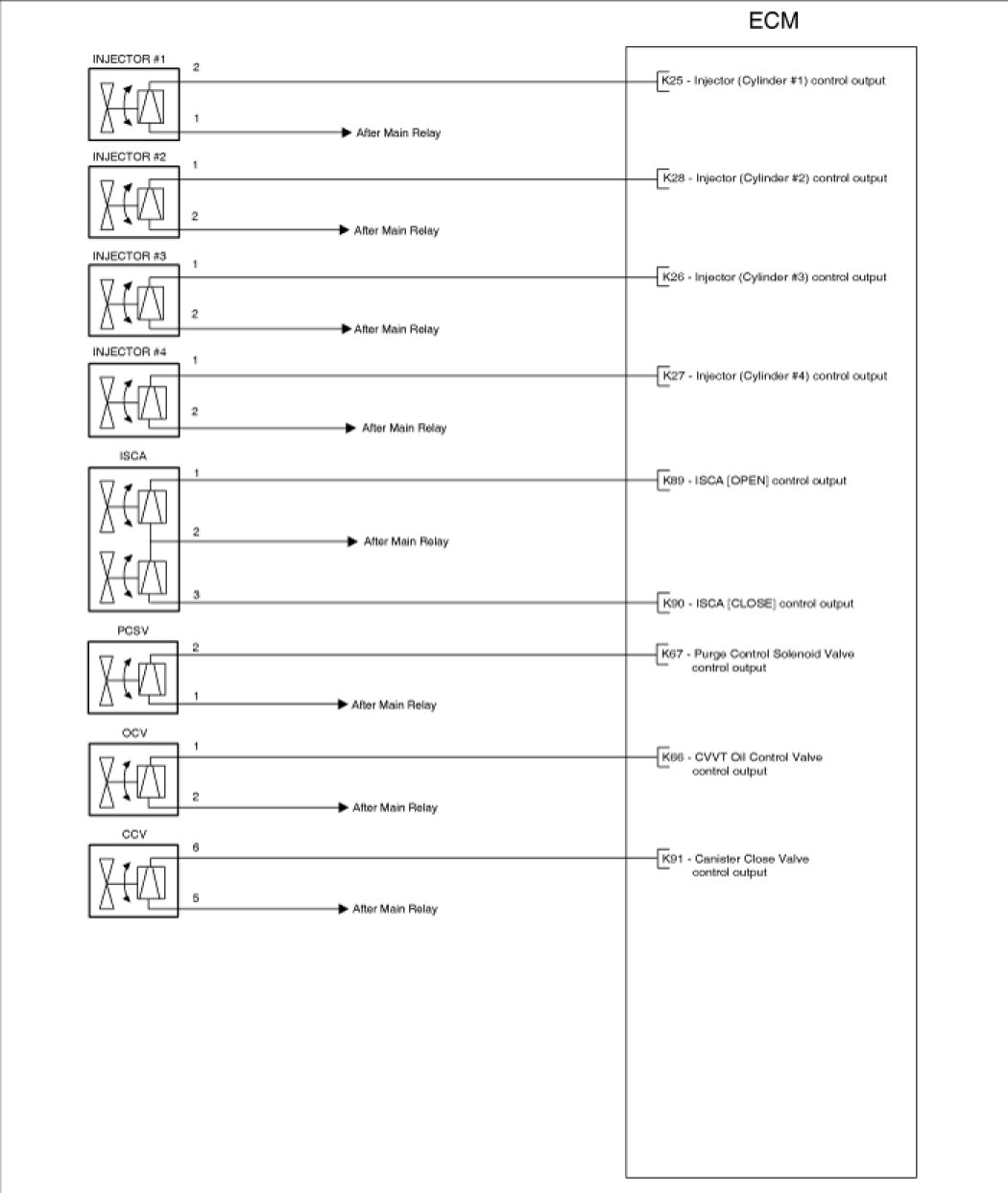

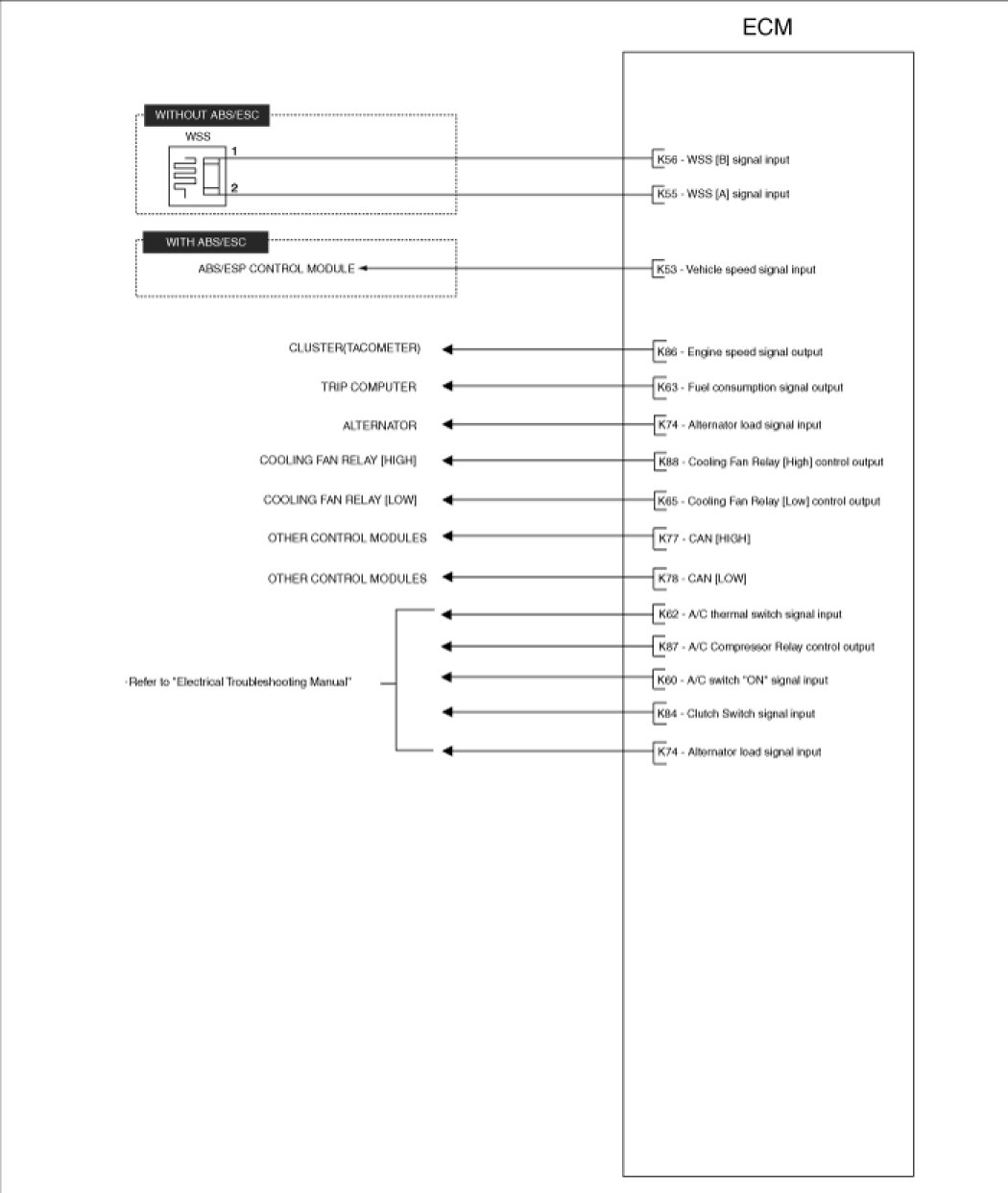

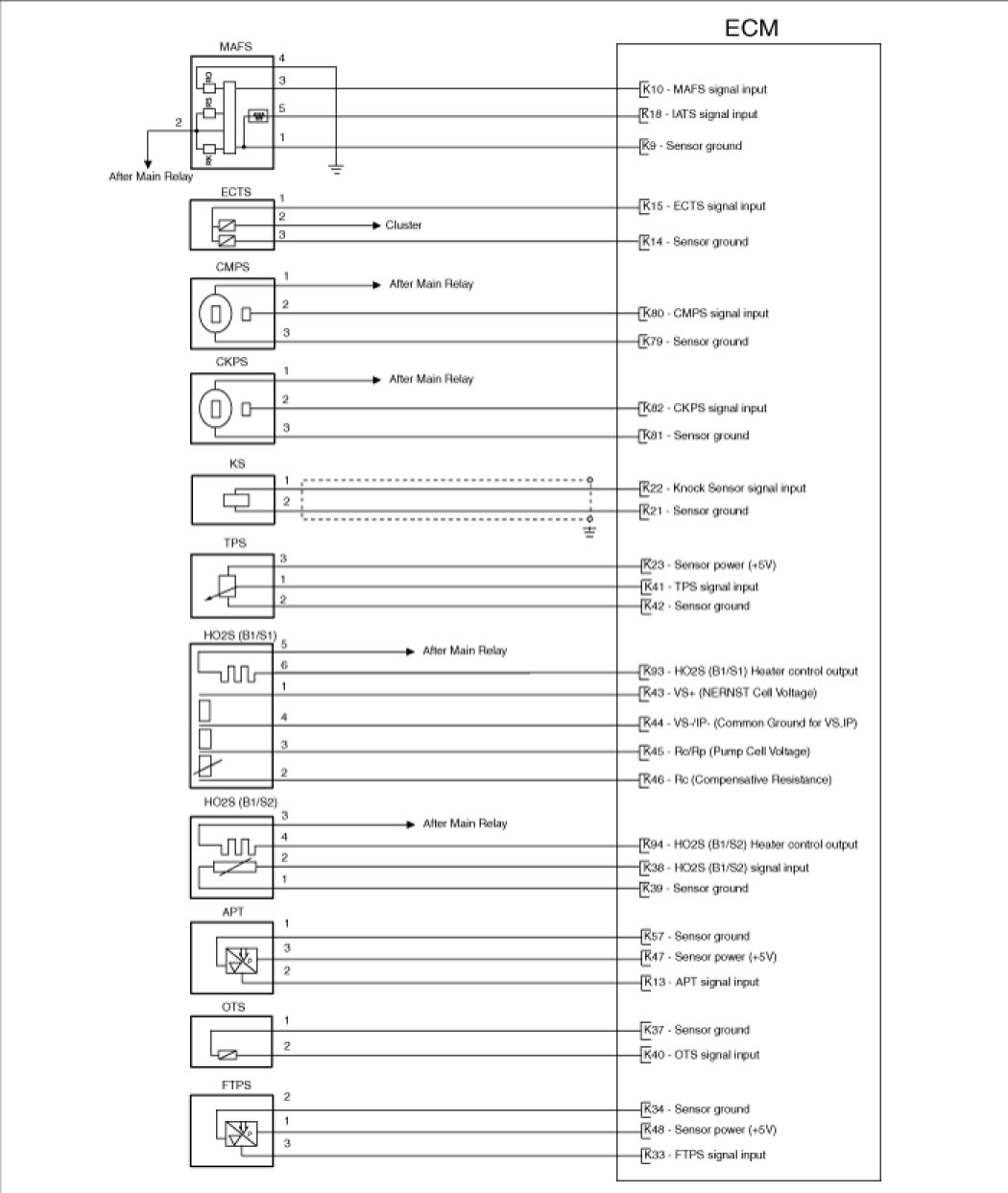

Circuit Diagram
