Wheels: Testing and Inspection

Run Out Inspection

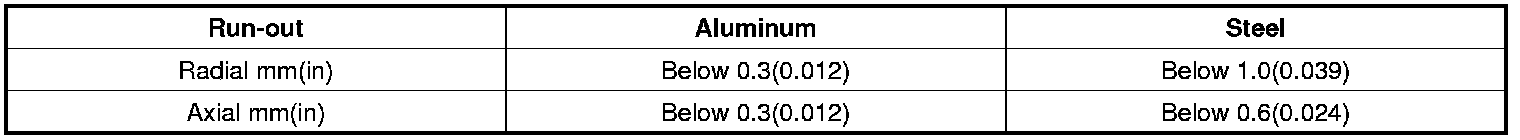

1. Jack up the vehicle.

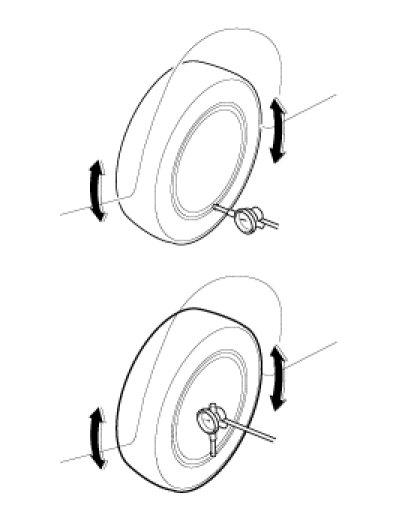

2. Measure the wheel Run-out by using a dial indicator as illustration below.





3. If measured value exceeds the standard value, replace the wheel.
