2. Diagnostic Chart

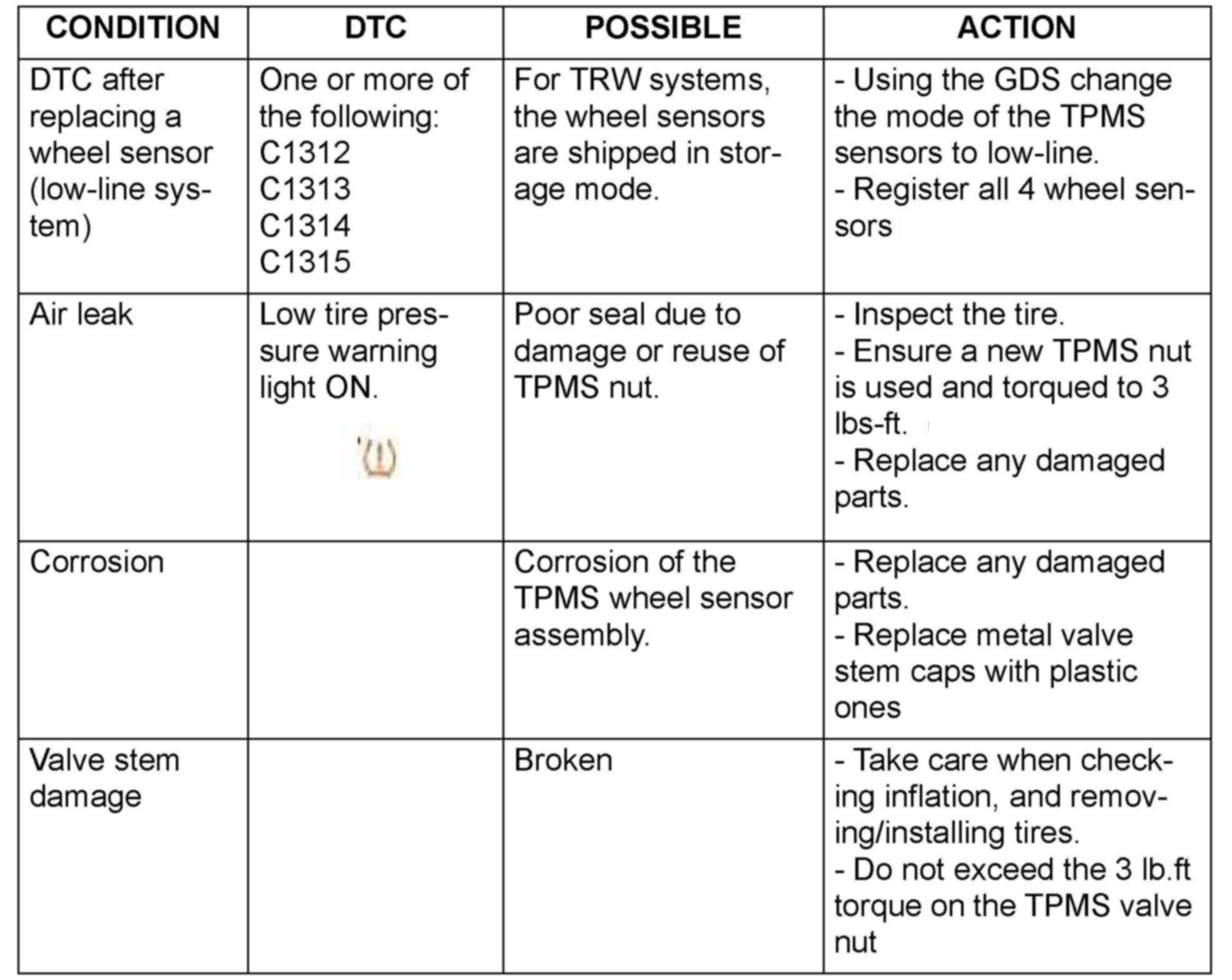

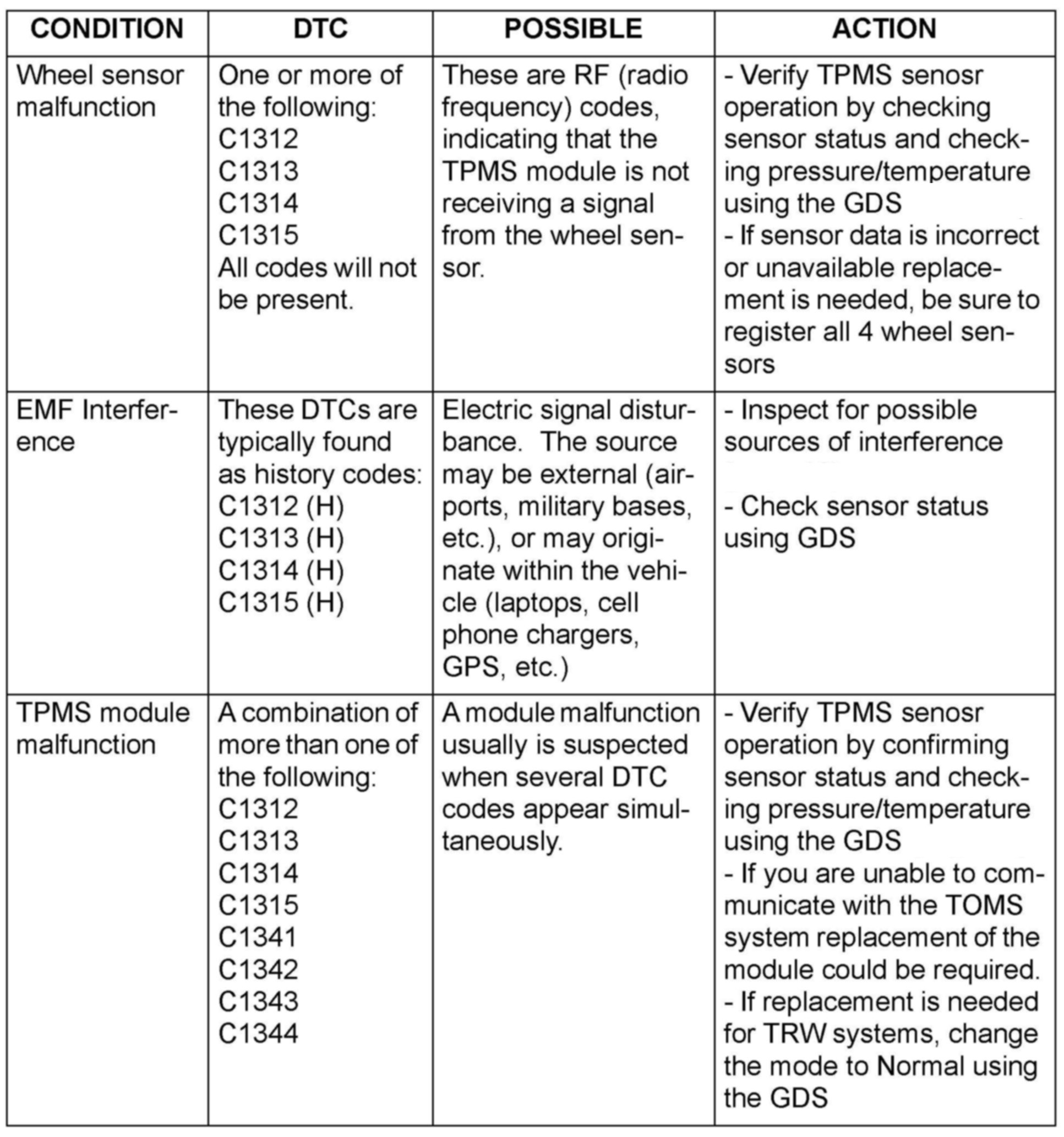

2. TPMS Condition Diagnostic ChartThe following is a list of conditions and the appropriate course of action. For detailed information on repair procedures, see the section Detailed TPMS Information.
The following is a list of conditions and the appropriate course of action. For detailed information on repair procedures, see the section Detailed TPMS Information.
