Roof Trim

Replacement

Room Lamp Replacement

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.

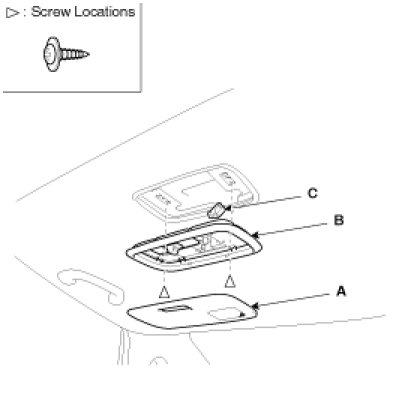

1. Remove the room lamp.
A. Remove the lens (A).
B. Remove the screws.
C. Pull out the room lamp (B).
D. Disconnect the connector (C).




2. Installation is the reverse of removal.
