Cluster Facia Replacement

Replacement

Cluster Facia Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Tilt the steering column down.

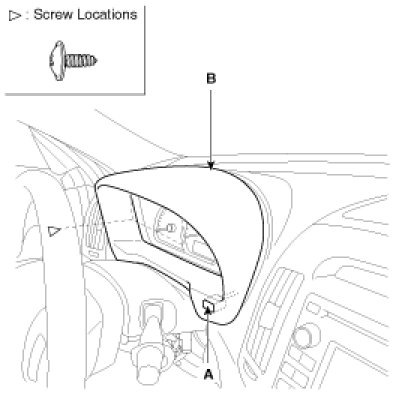

2. After disconnecting the trip sensor connector (A), remove the cluster facia panel (B).

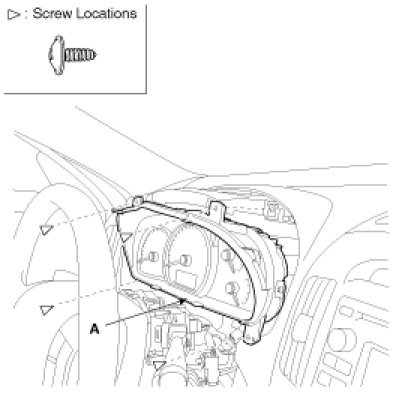

3. After loosening the mounting screws, then remove the cluster fascia (A).




4. Installation is the reverse the removal.

NOTE:
- Make sure the connector is plugged in properly.
