Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Diagrams
>>
Connector Views
Connector Views
Components

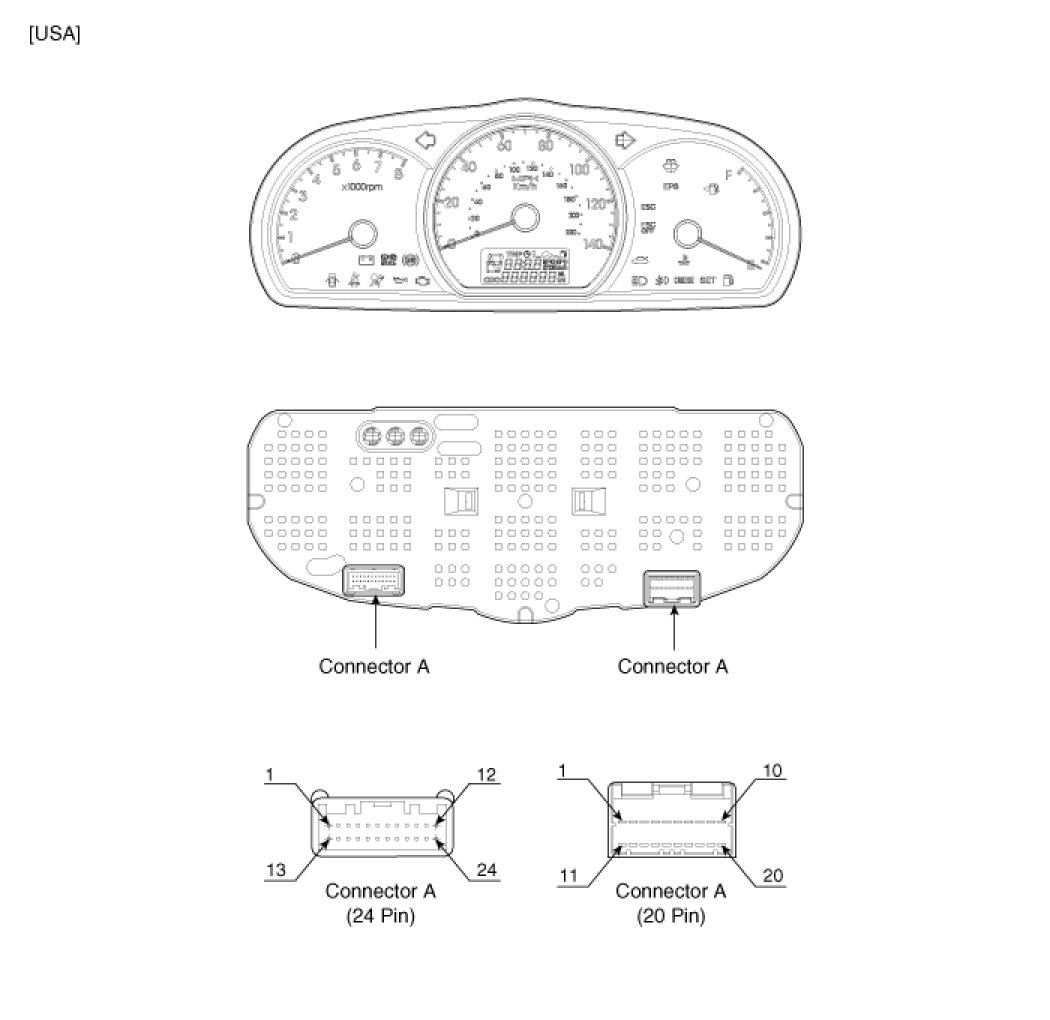

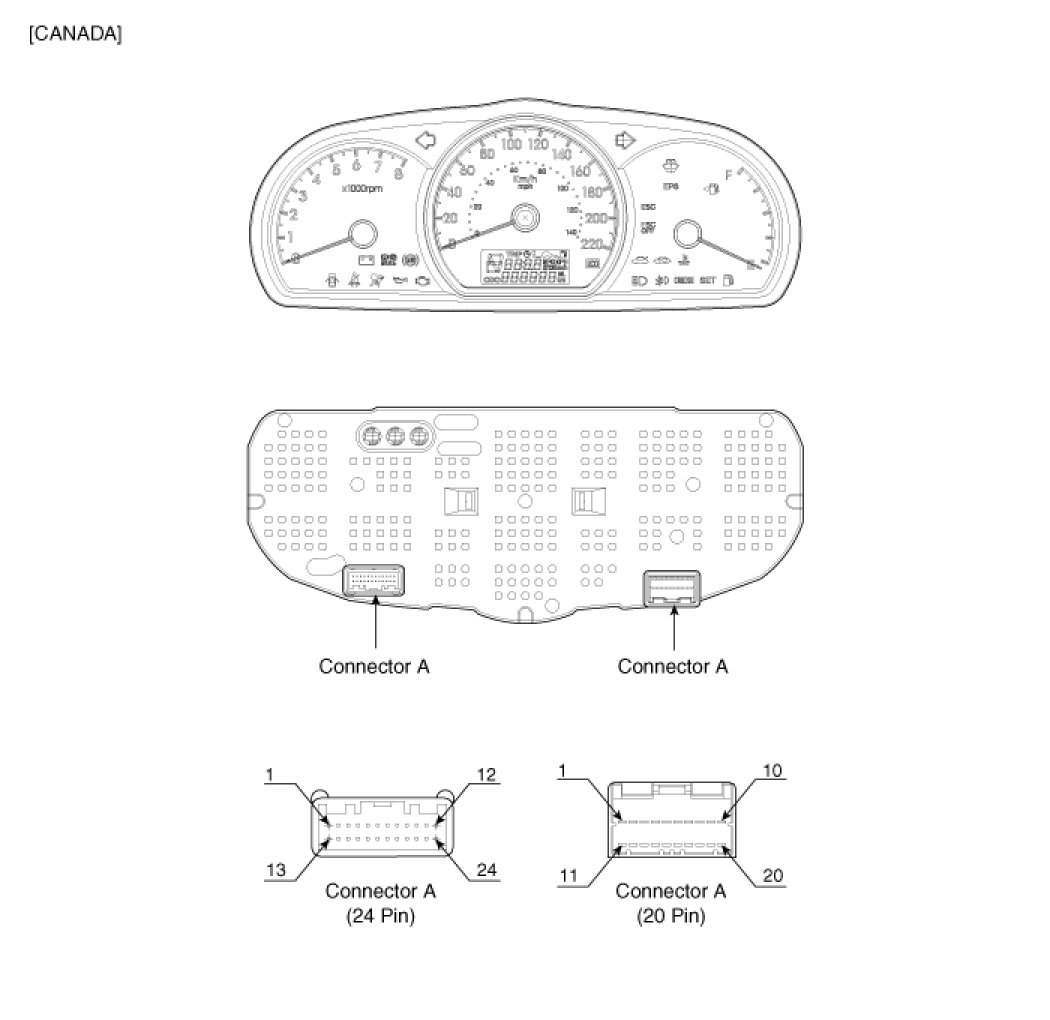

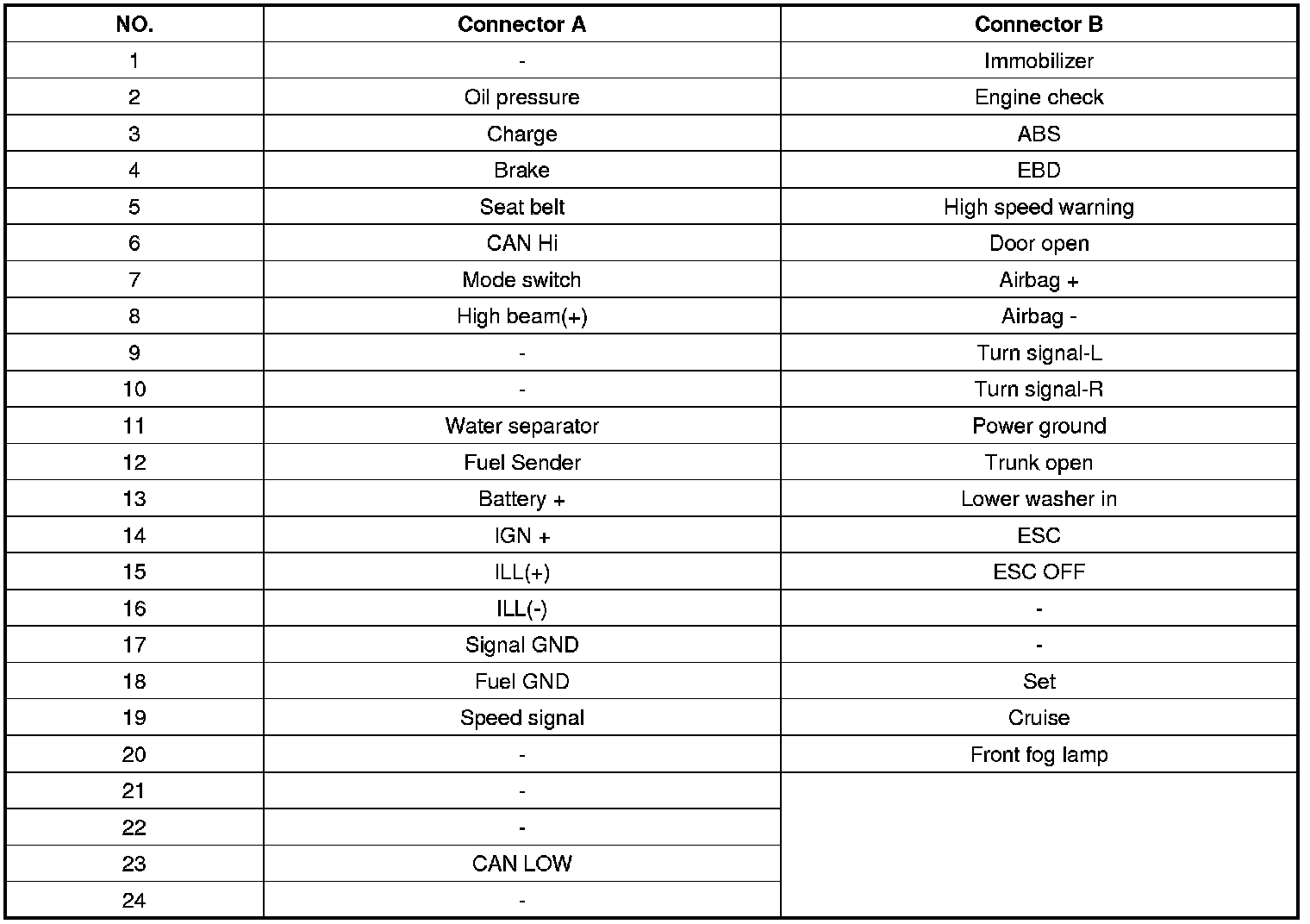

Instrument Cluster Connector Pin
