Blower Resistor

Inspection

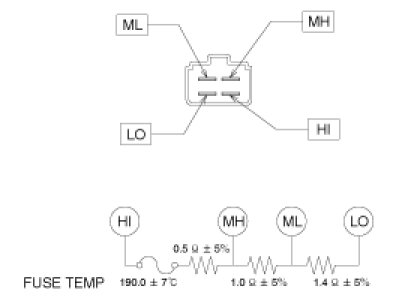

1. Measure terminal - to - terminal resistance of blower resistor.
2. If measure resistance is not within specification, the blower resistor must be replaced.
