Blower Resistor

Replacement

1. Disconnect the negative (-) battery terminal.

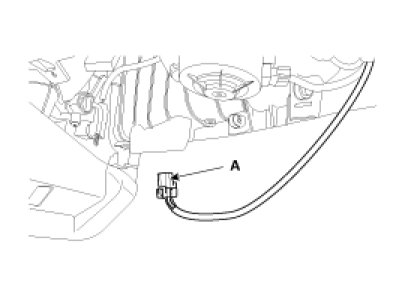

2. Disconnect the blower resistor connector (A) at the connecting part blower unit.

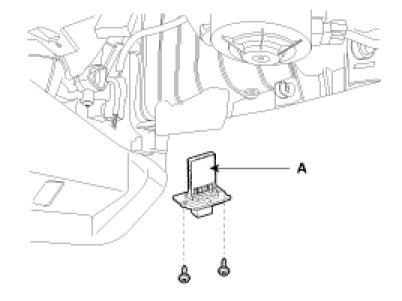

3. Remove the blower resistor(B) after loosening the mounting screw.




4. Installation is the reverse order of removal.
