Home >> Hyundai >> 2009 >> Elantra L4-2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> Remote Control, Audio - Stereo

Remote Control, Audio - Stereo

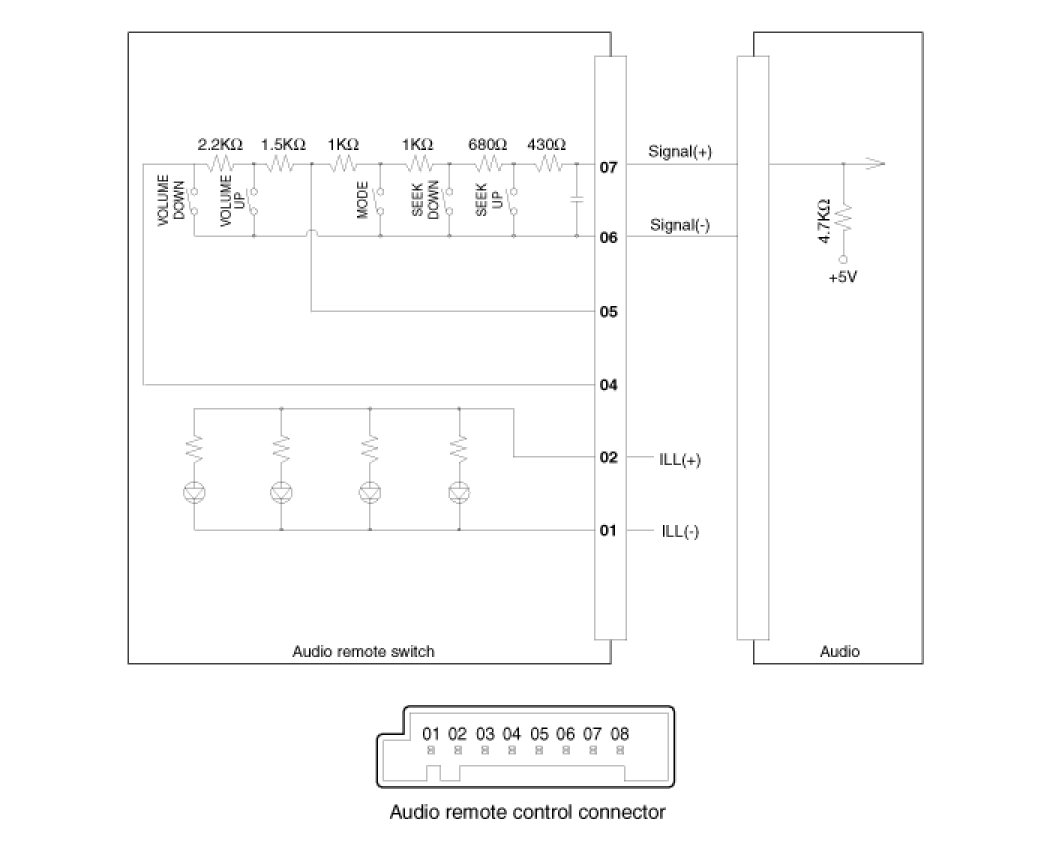

Circuit Diagram
