Home >> Hyundai >> 2009 >> Elantra L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Systems

Air Bag Systems

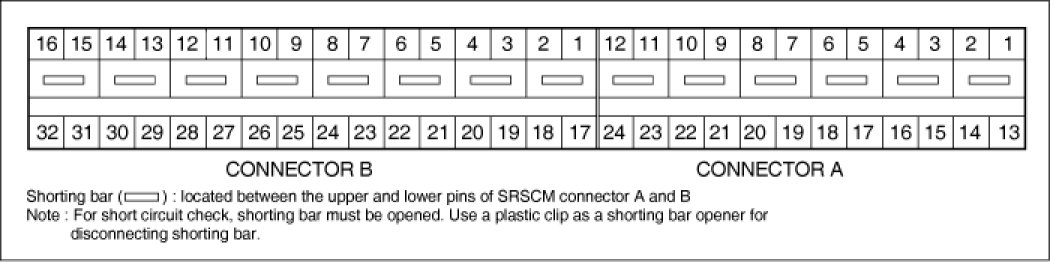

SRSCM Connector Terminal (Depowered)

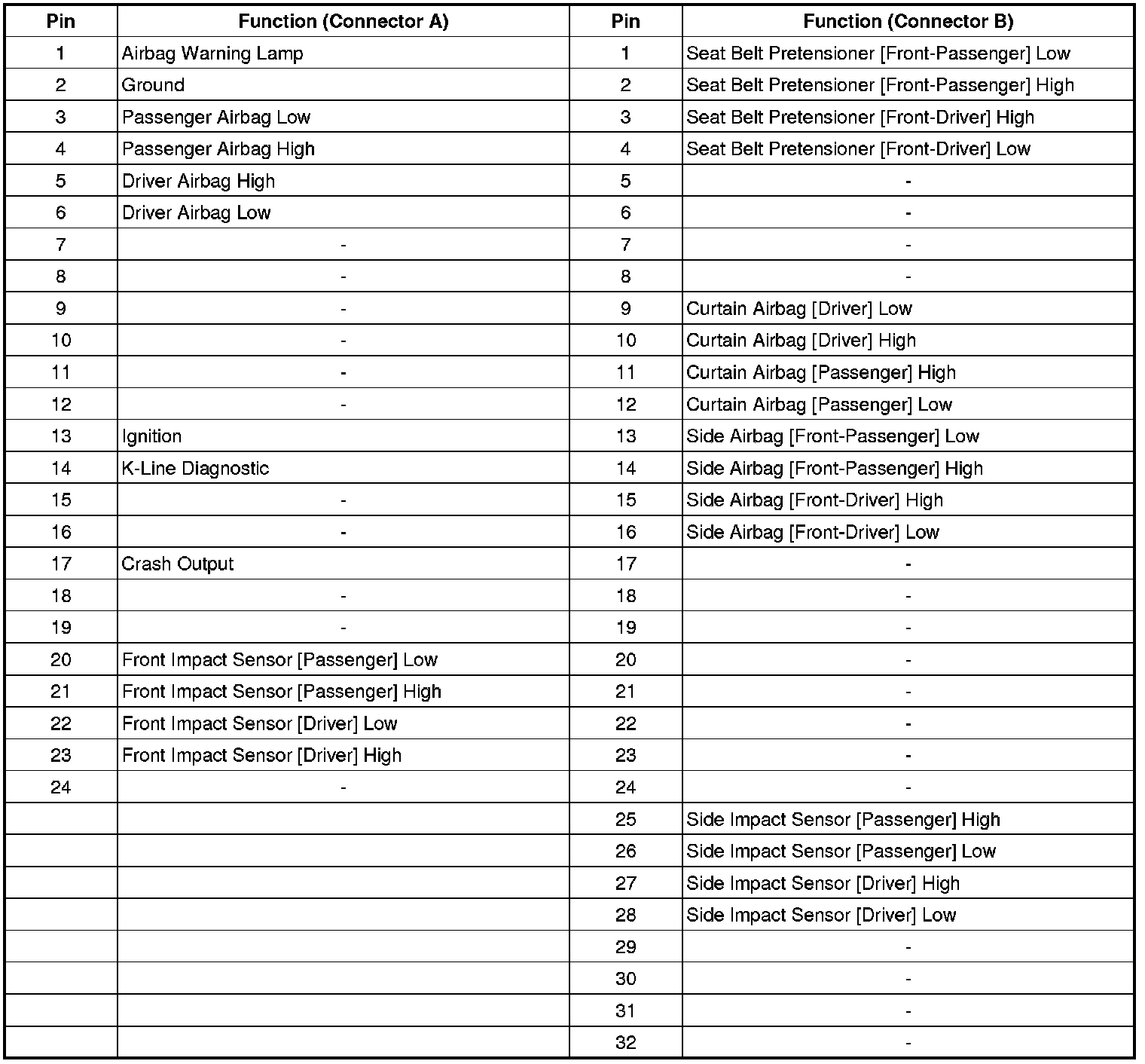

SRSCM Harness Connector

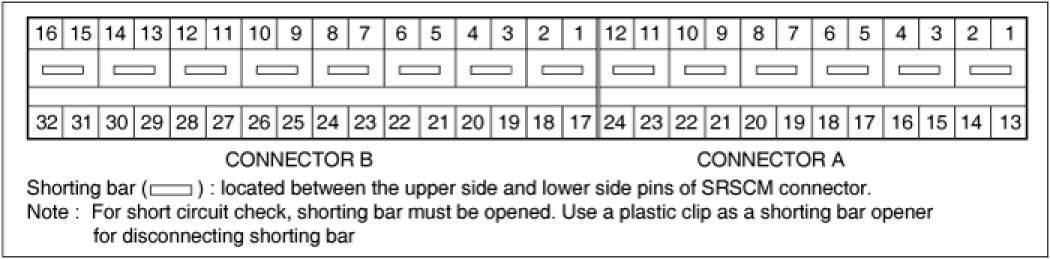

SRSCM Connector Terminal (Advanced)

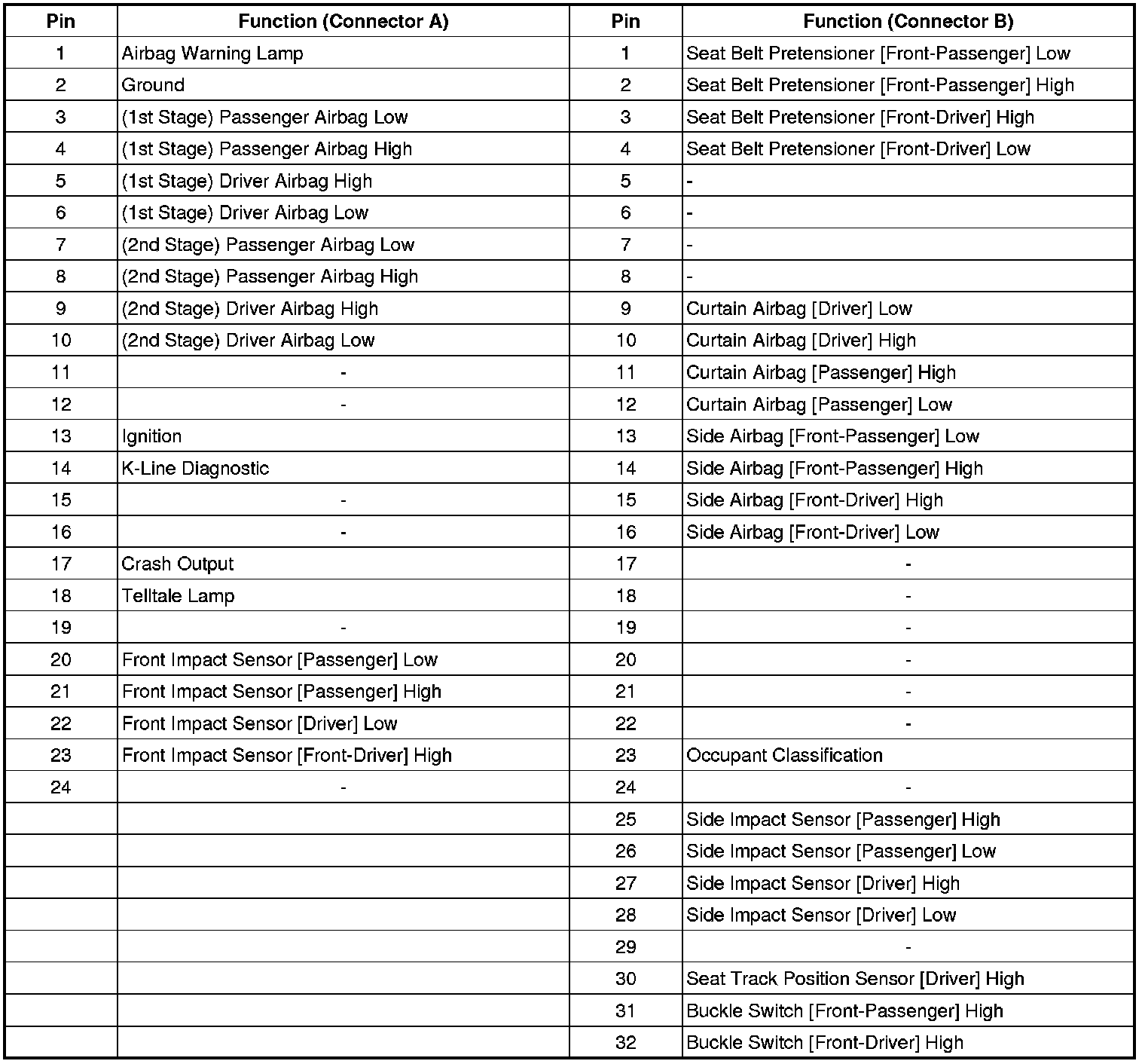

SRSCM Harness Connector

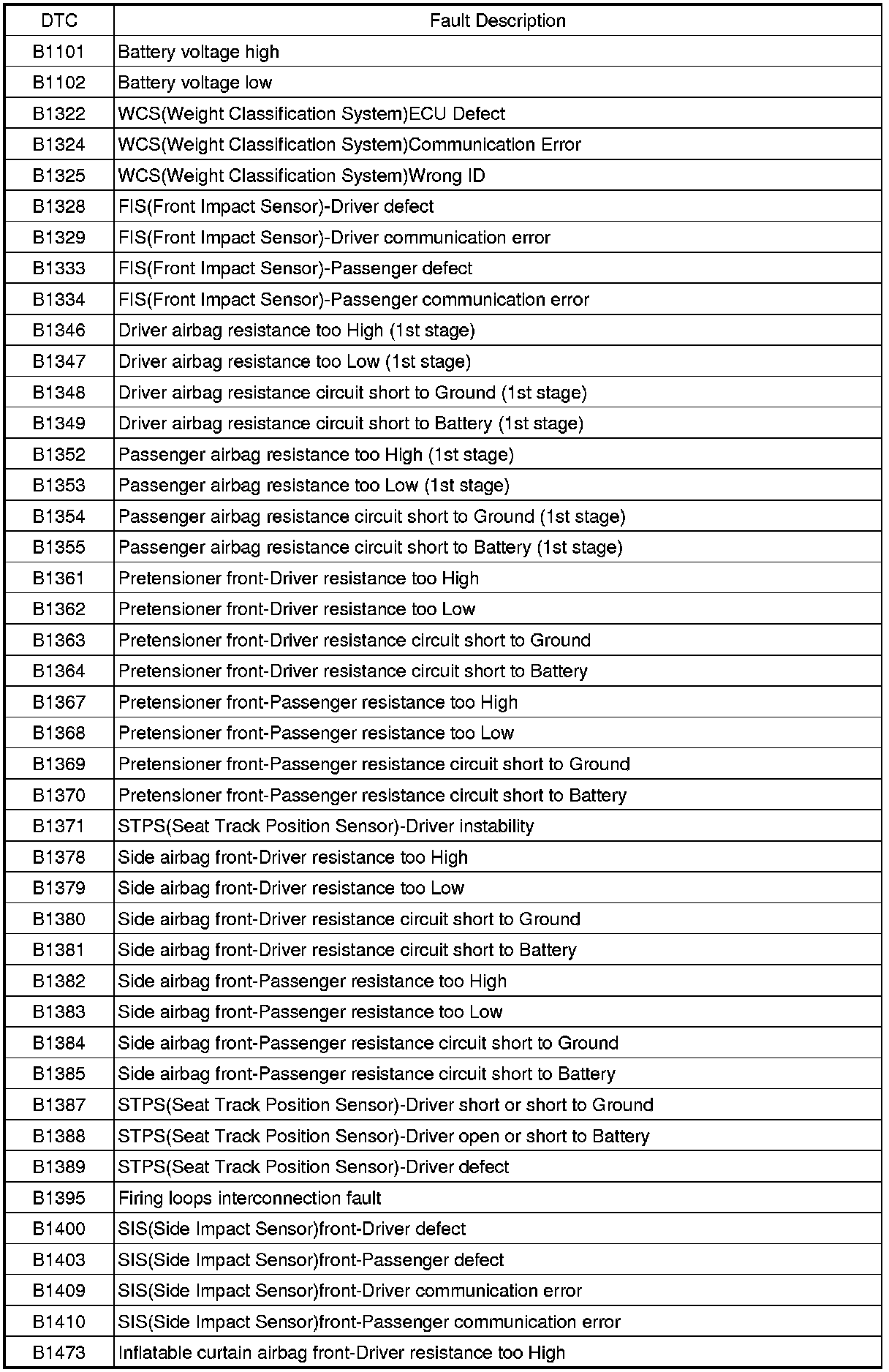

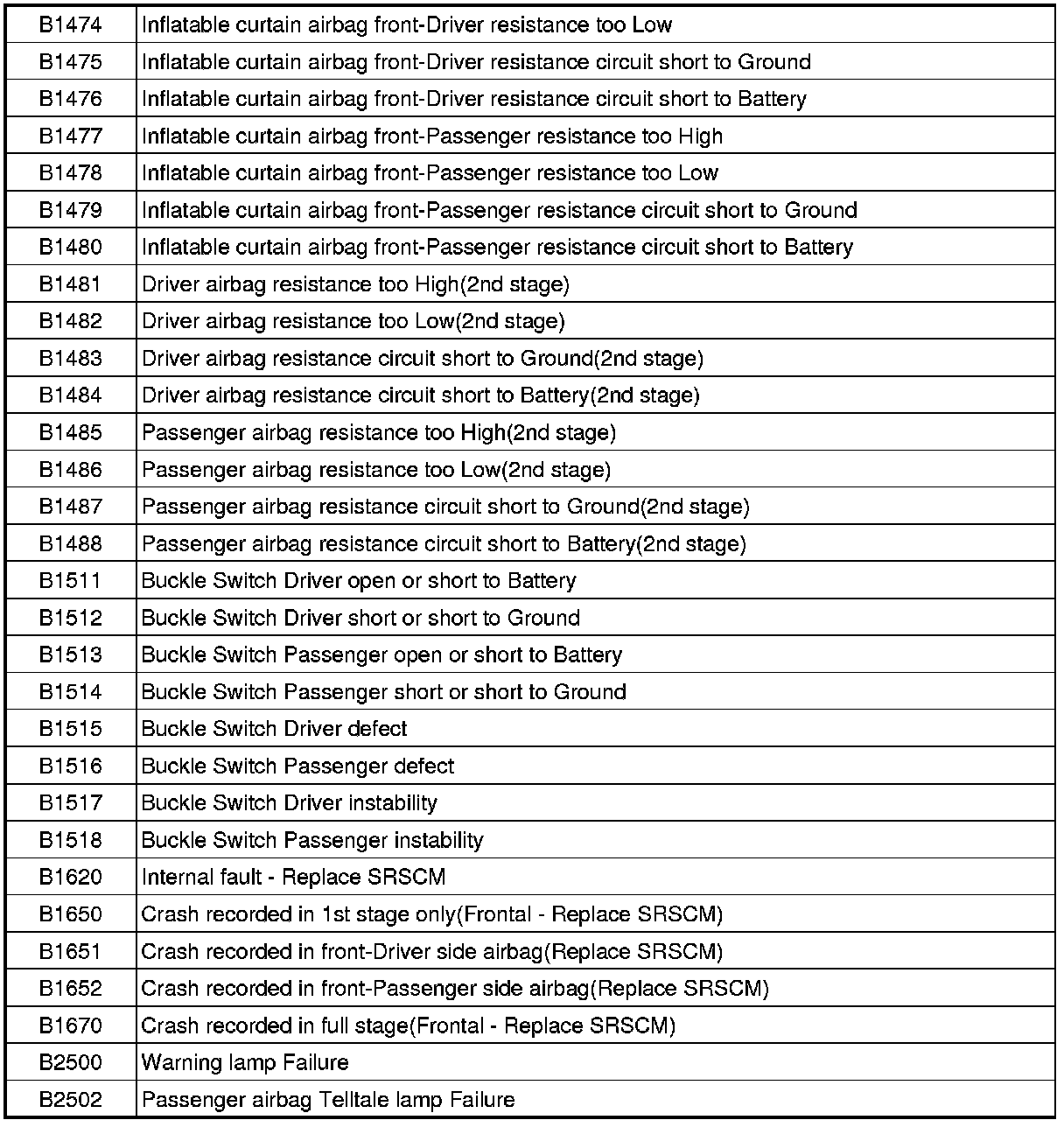

Diagnostic Trouble Codes (DTC)
