Repair Procedures

Removal

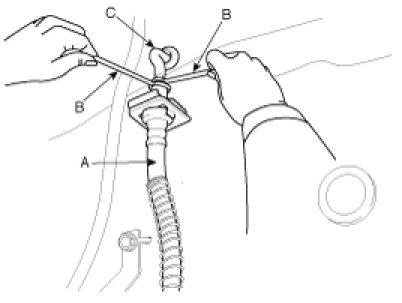

1. Disconnect the brake hose (C) from the brake line (A) using a flare-nut wrench (B).

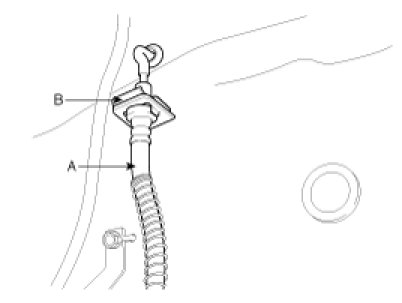

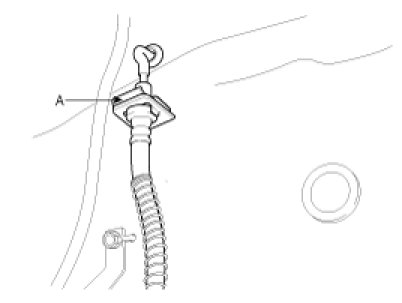

2. Remove the brake hose clip (B), and then remove the brake hose (A).

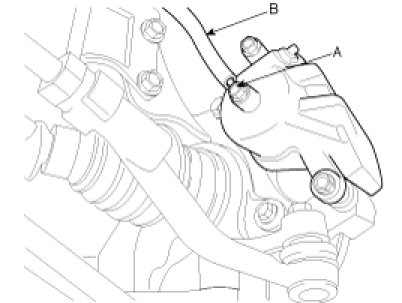

3. Remove the connector bolt (A) from the caliper, and disconnect the brake hose (B) from the caliper.






Installation

1. Install a brake hose (B) on the caliper with tightening brake hose bolt (A) and washer.

Tightening torque : N.m (kgf.m, lb-ft)
24.5 - 29.4 (2.5 - 3.0, 18.1 - 21.7)





2. Connect the brake hose (A) to the brake line (C) using a flare-nut wrench (B).




3. Install the brake hose clip (A) to the brake hose bracket.




4. After installing the brake hose, bleed the brake system.

CAUTION:
- Check the brake hoses for interference and twisting.
- Check the brake hose and line joint for leaks, and tighten if necessary.
