Front

Front Brake Pad Check

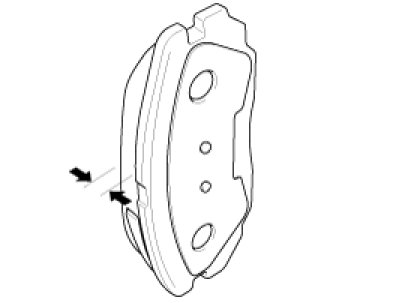

1. Check the pad wear. Measure the pad thickness. replace it if it is less than the specified value.

Pad thickness
Standard value : 11.0 mm (0.43 in)
Service limit : 2.0 mm (0.0787 in)





2. Check that grease is applied, to sliding contact points and the pad and backing metal for damage.
