When Ignition Key Is Turned on (Engine OFF), the ABS Warning Lamp Does Not Light Up.

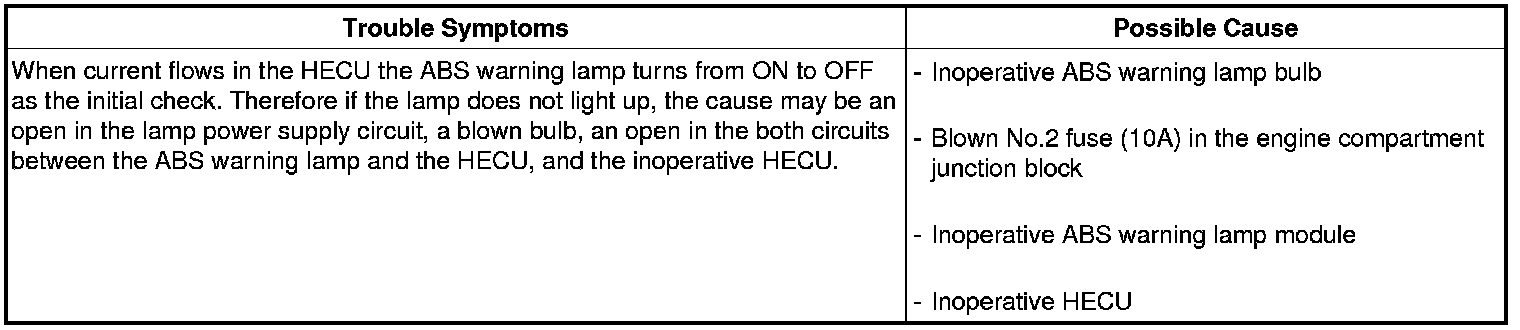

Detecting Condition






Inspection Procedures
Problem Verification
1. Disconnect the connector from the ABS control module and turn the ignition switch ON.
2. Does the ABS warning lamp light up?






Check the Power Source for the ABS Warning Lamp
1. Disconnect the instrument cluster connector(M01-8) and turn the ignition switch ON.

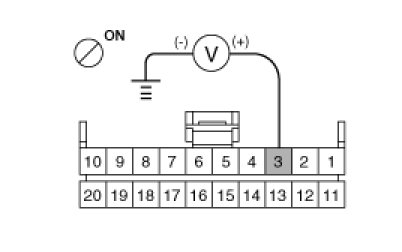

2. Measure the voltage between terminal 3 of the cluster harness side connector(M01-8) and body ground.

Specification :approximately B+


3. Is voltage within specification?










Check for Blown Fuse
1. Check continuity of fuse (10A) from the engine compartment junction block.
2. Is there continuity?
