Even After the Engine Is Started, The ABS Warning Lamp Remains ON.

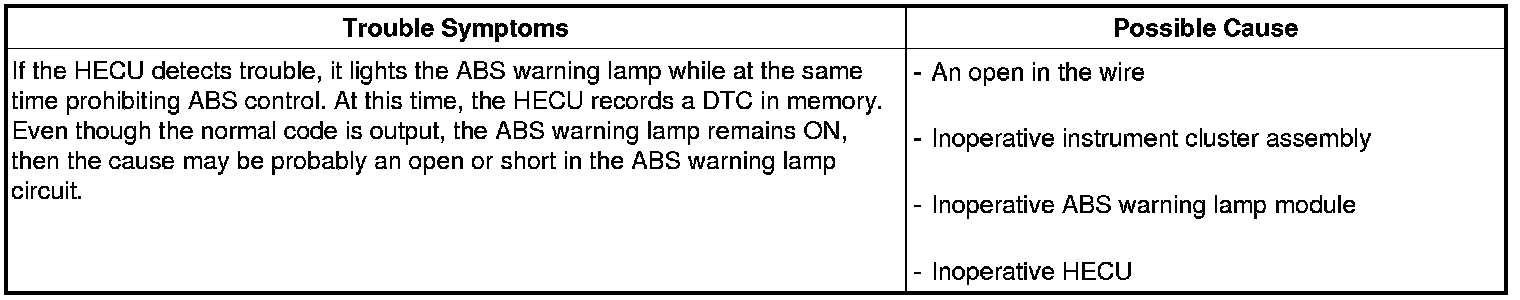

Detecting Condition






Inspection Procedures
Check DTC Output
1. Connect the Scan Tool to the 16P data link connector located behind the driver's side kick panel.
2. Check the DTC output using Scan Tool.
3. Is DTC output?






Check Instrument Cluster
1. Disconnect the cluster connector and turn the ignition switch ON.
2. Does the ABS warning lamp remains ON?






Check for Battery Voltage in the Wire
1. Check for continuity in the wire between cluster and ABS control module.
2. Is there continuity?
